Buick
>>
1988
>>
Century L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Gauges Fuse
Gauges Fuse

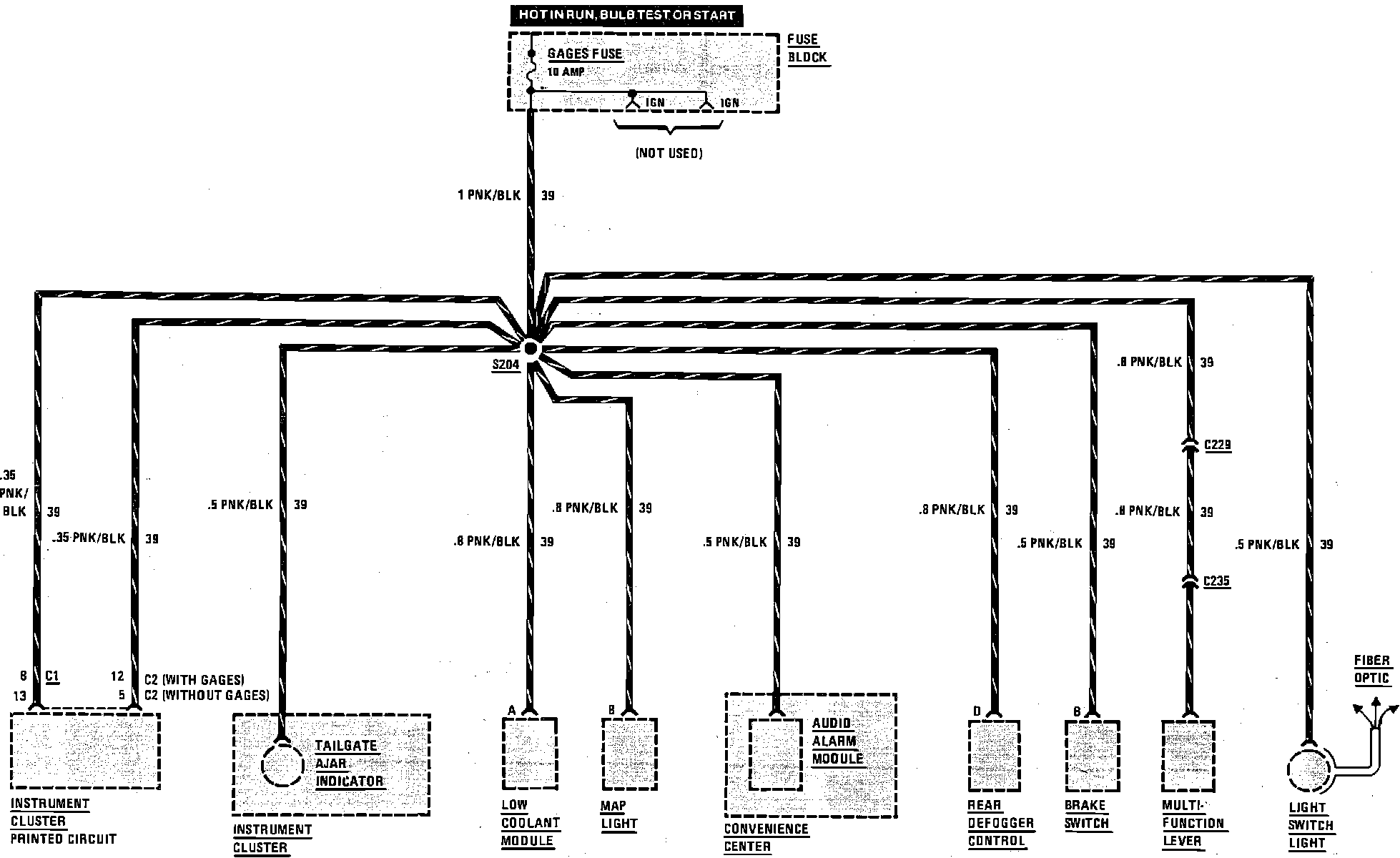

Fuse Block Details (Gages Fuse):
