Home
>>
Buick
>>
1987
>>
Somerset V6-181 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Grounds, Power & Service Engine Soon (SES) Indicators
Grounds, Power & Service Engine Soon (SES) Indicators

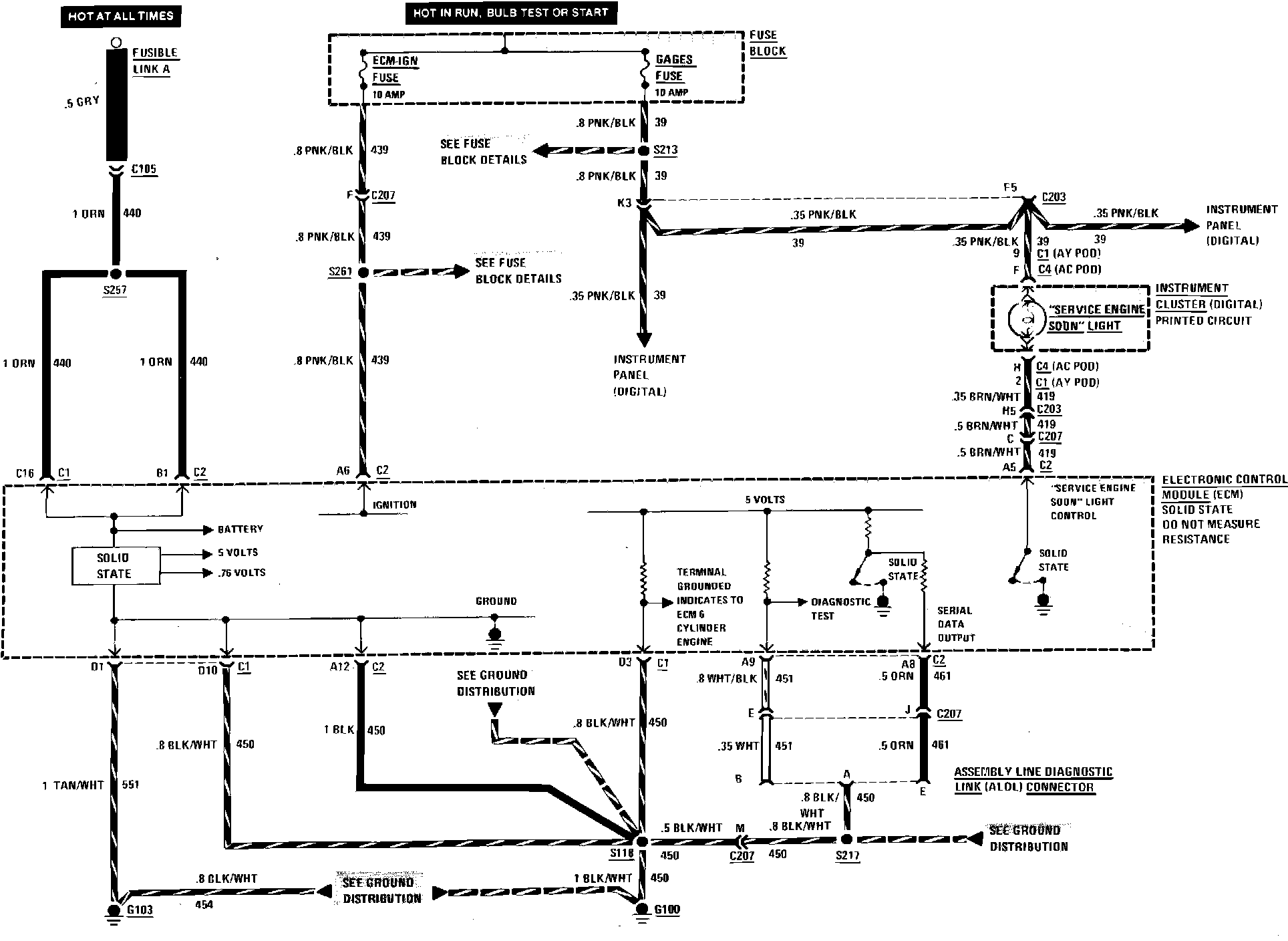

Fuel Injection Wiring Circuit (Ground, Power & Service Engine Soon Light):
