Home
>>
Buick
>>
1987
>>
Somerset V6-181 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Control & Fuel Injectors
Fuel Control & Fuel Injectors

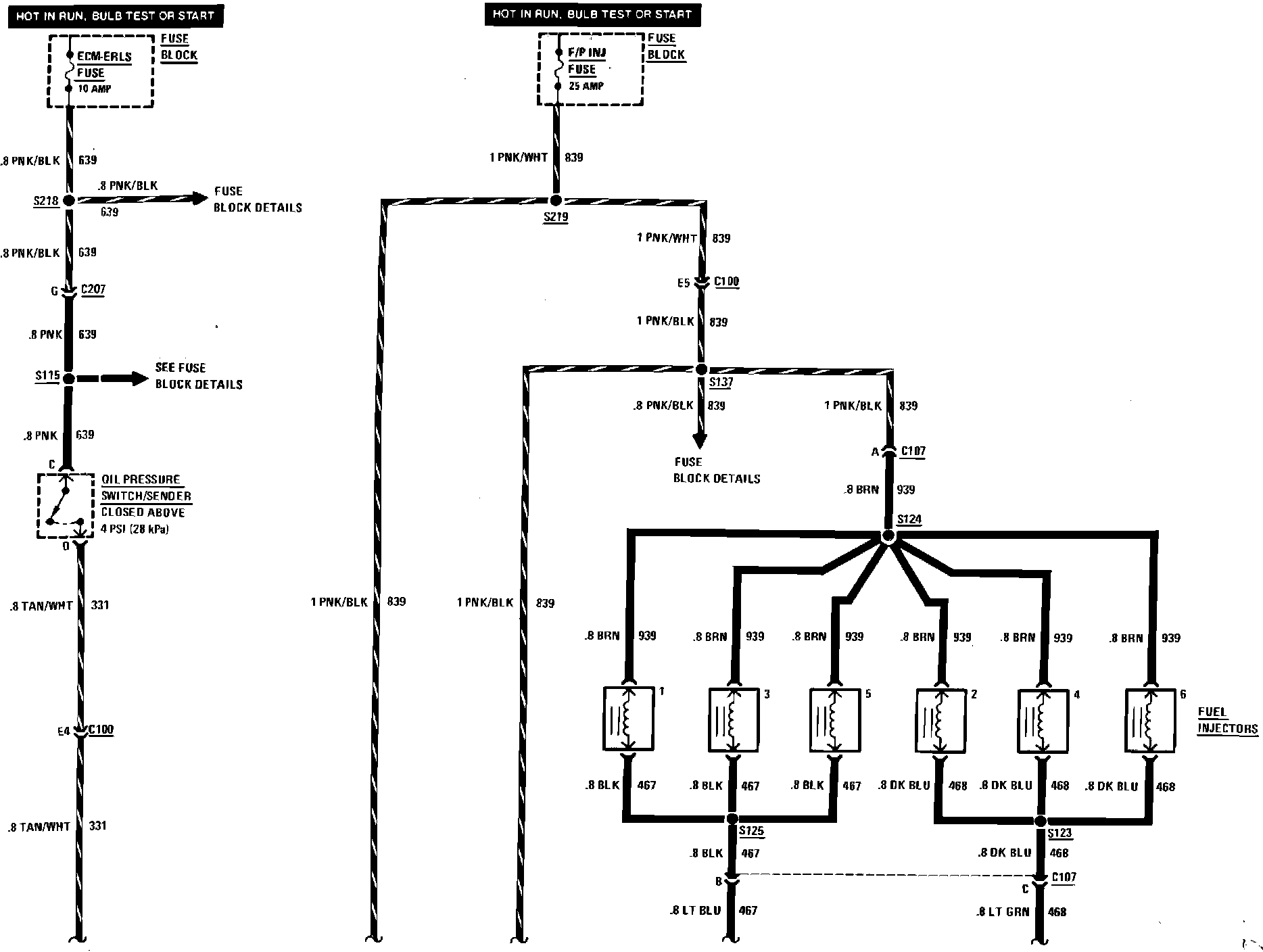

Fuel Injection Wiring Circuit (Fuel Control & Injectors):
Fuel Injection Wiring Circuit (Fuel Control & Injectors):
