Buick
>>
1987
>>
Somerset L4-151 2.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Without Air Conditioning
Without Air Conditioning

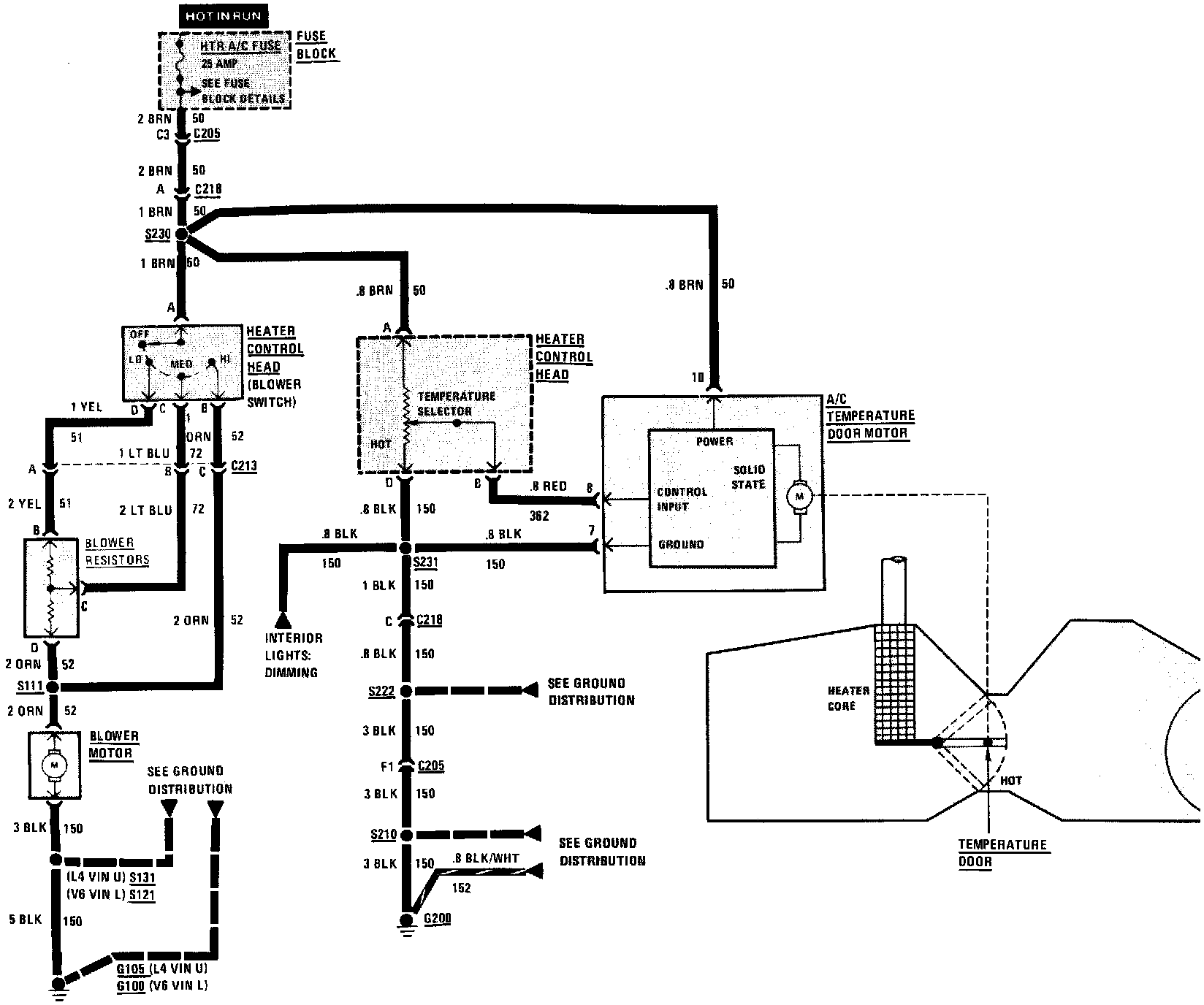

�3O Heater Wiring Diagram:
