Home >> Buick >> 1987 >> Somerset L4-151 2.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Testing and Inspection >> Component Tests and General Diagnostics >> Table 1

Table 1

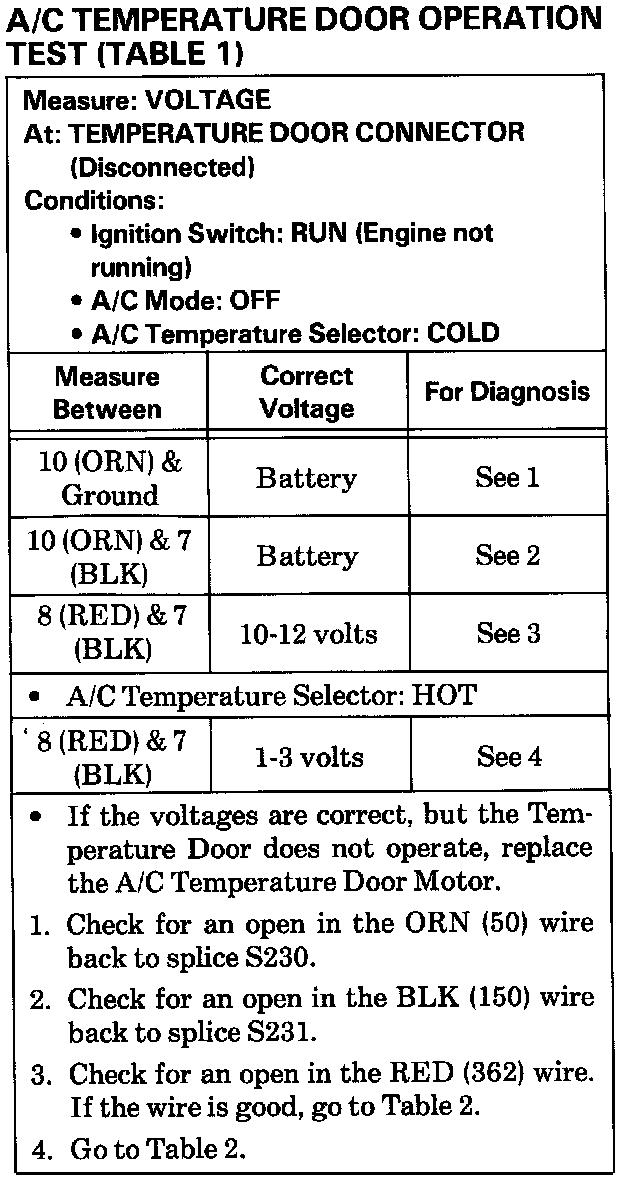

A/C Temperature Door Operation Test Table 1.:
