Seat Belt Retractor
Seat Belt Retractor

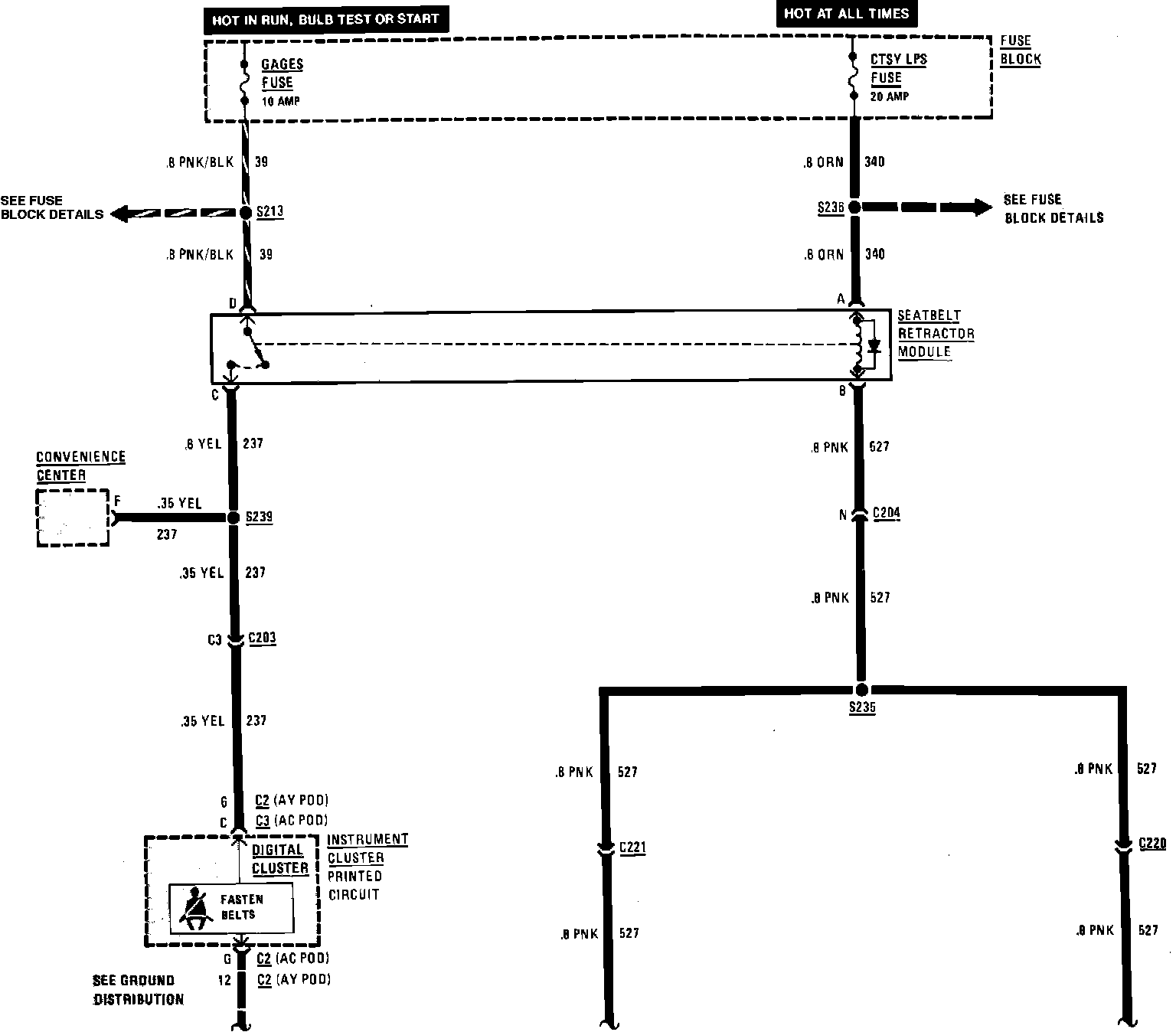

Seatbelt Retractor Wiring Circuit:

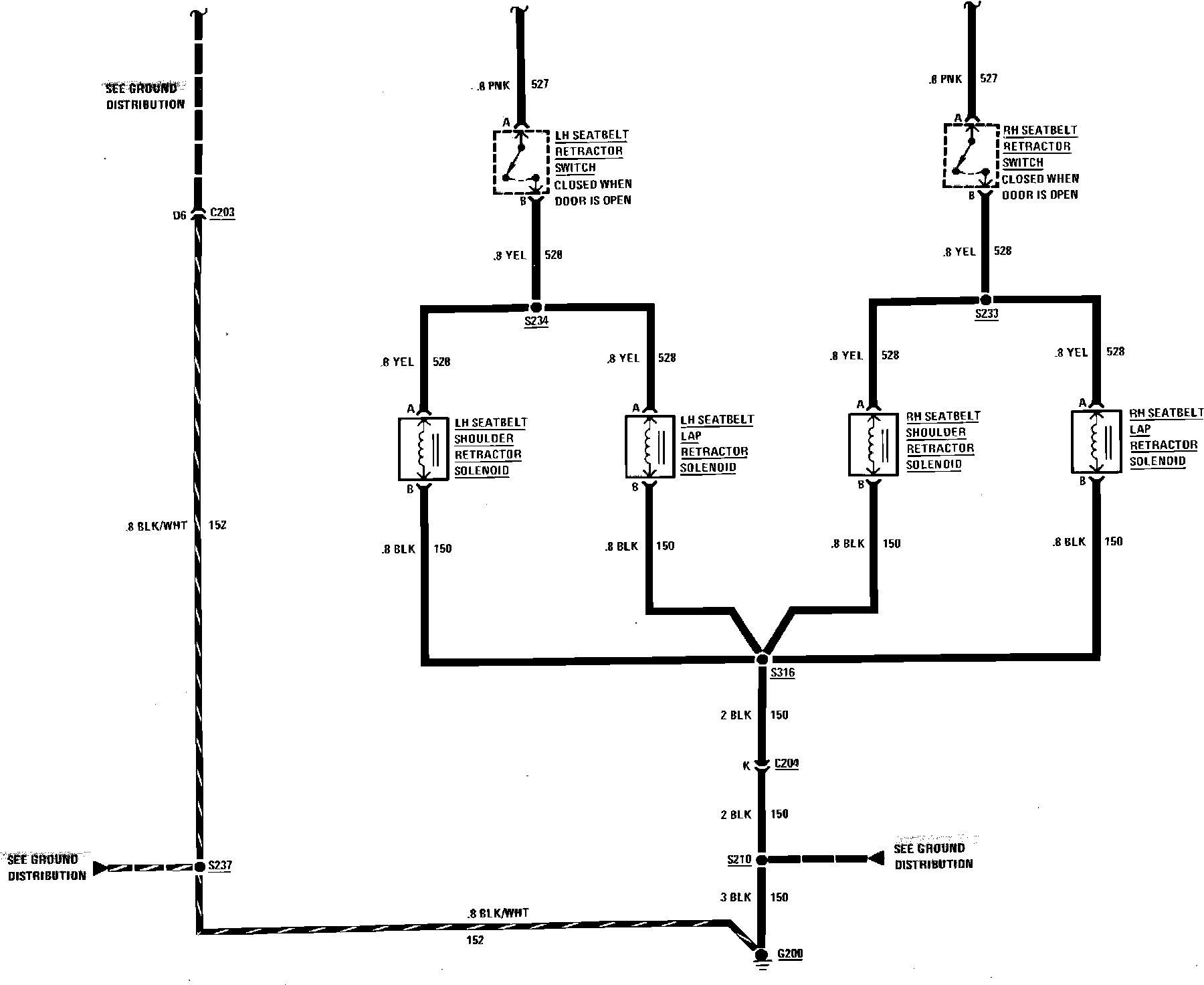

Seatbelt Retractor Wiring Circuit:
