Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Buick
>>
1987
>>
Skylark L4-151 2.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Vehicle Speed Sensor (VSS)
>>
With AC POD
With AC POD

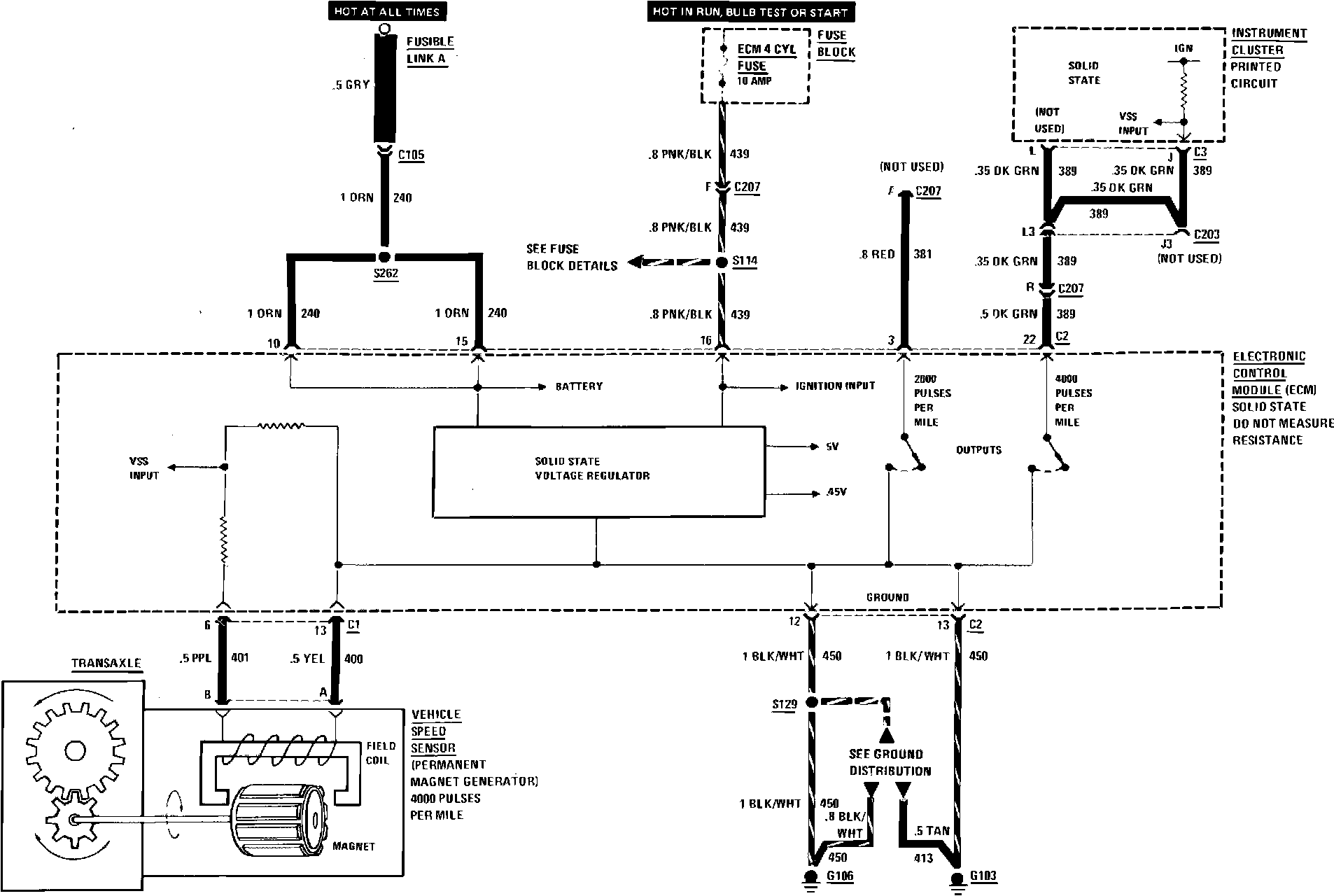

Vehicle Speed Sensor (With AC POD):
