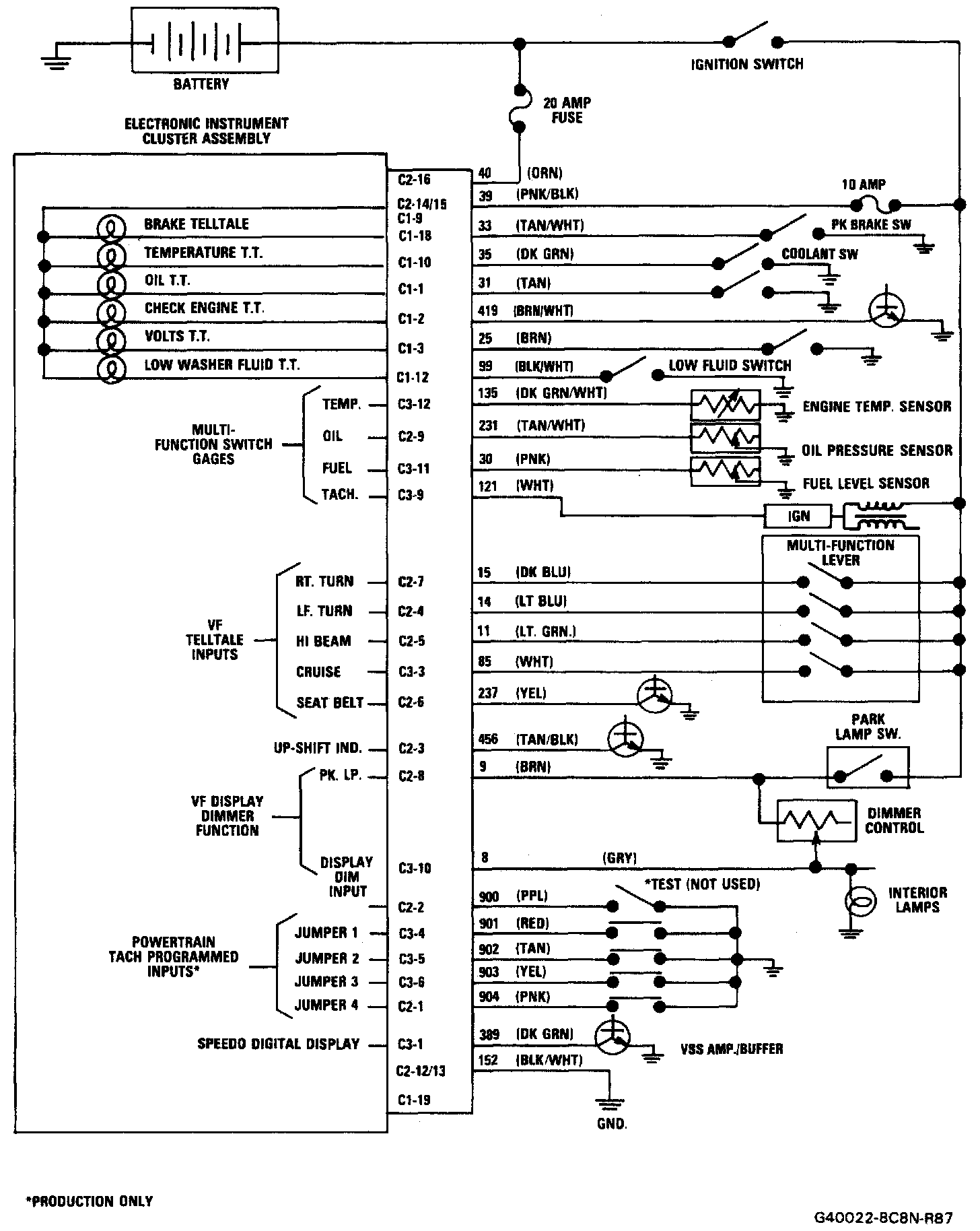

Cluster Input & Output Relationships Circuit
Cluster Input & Output Relationships Circuit
Type AY Circuit:
