Home >> Buick >> 1987 >> Skylark L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Compressor Controls >> Part 1 of 2

Part 1 of 2

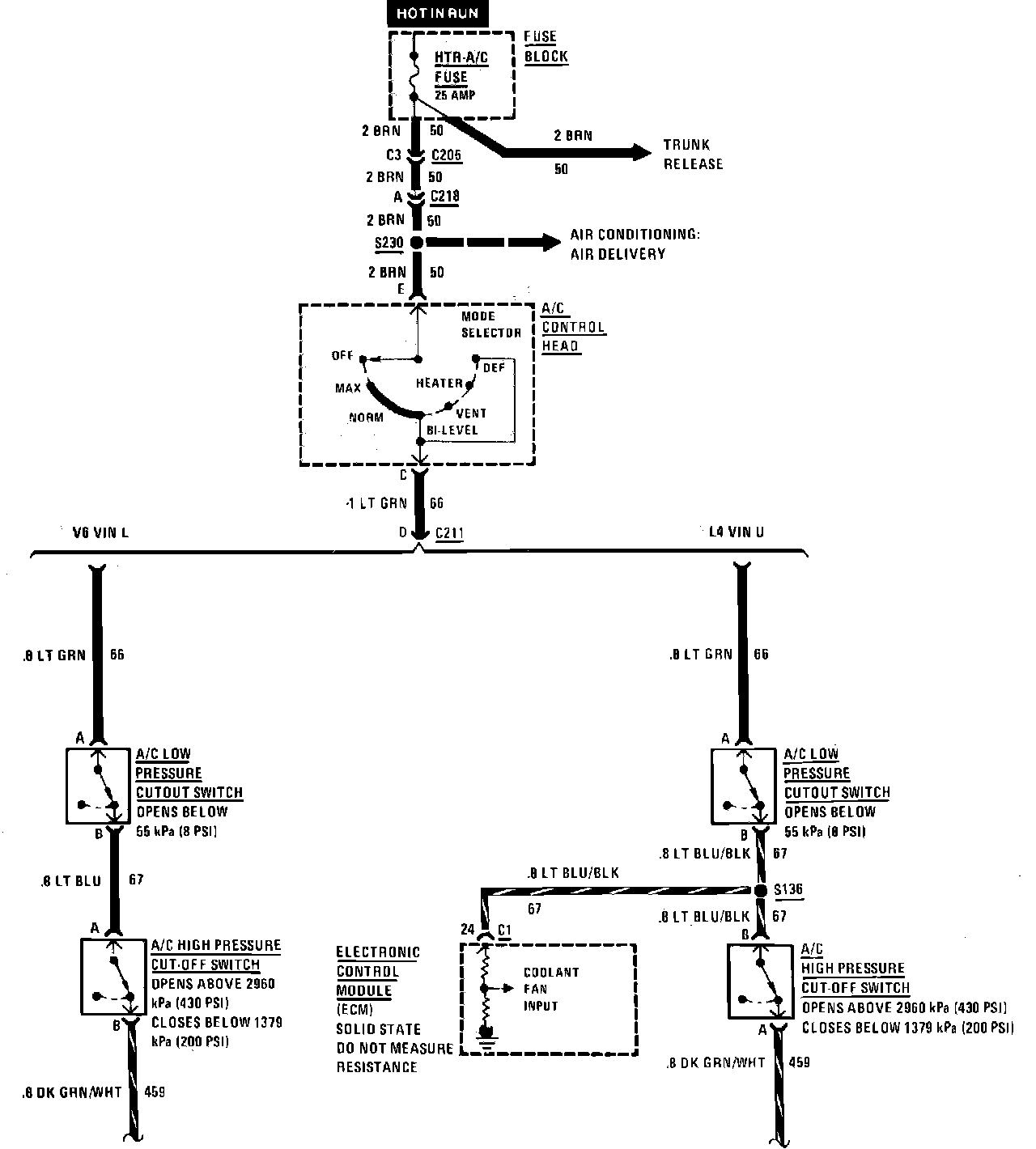

A/C Compressor Control Wiring Circuit:
