Buick
>>
1987
>>
Skyhawk L4-121 2.0L VIN 1 TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G320 Sedan
G320 Sedan

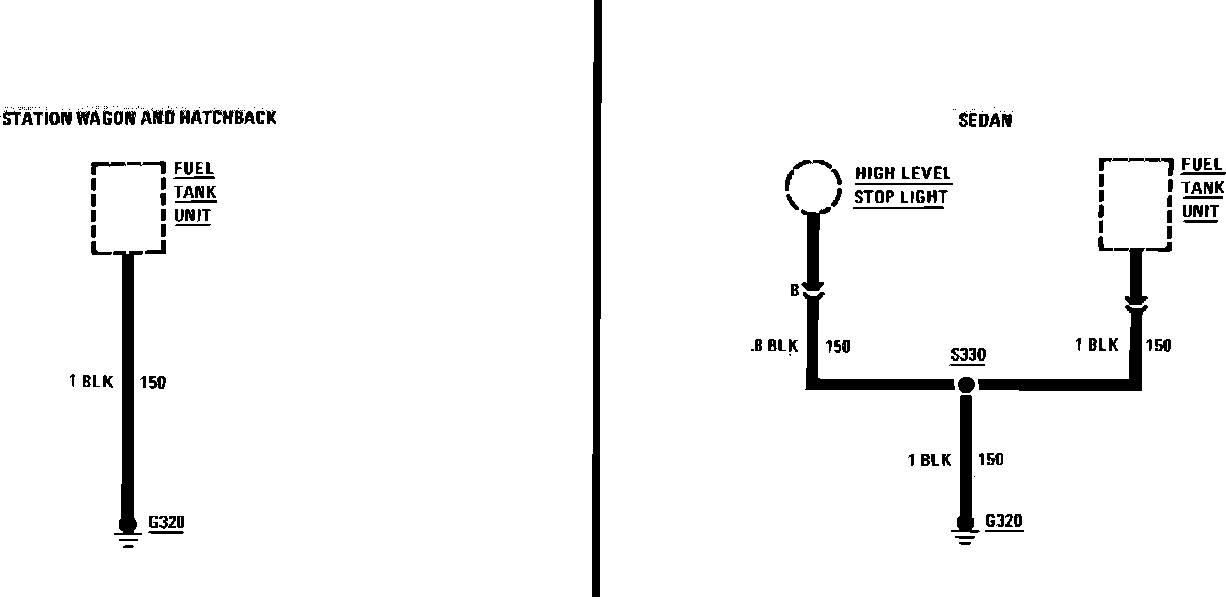

Ground Distribution Wiring Circuit (G320):
