Home
>>
Buick
>>
1987
>>
Riviera V6-231 3.8L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

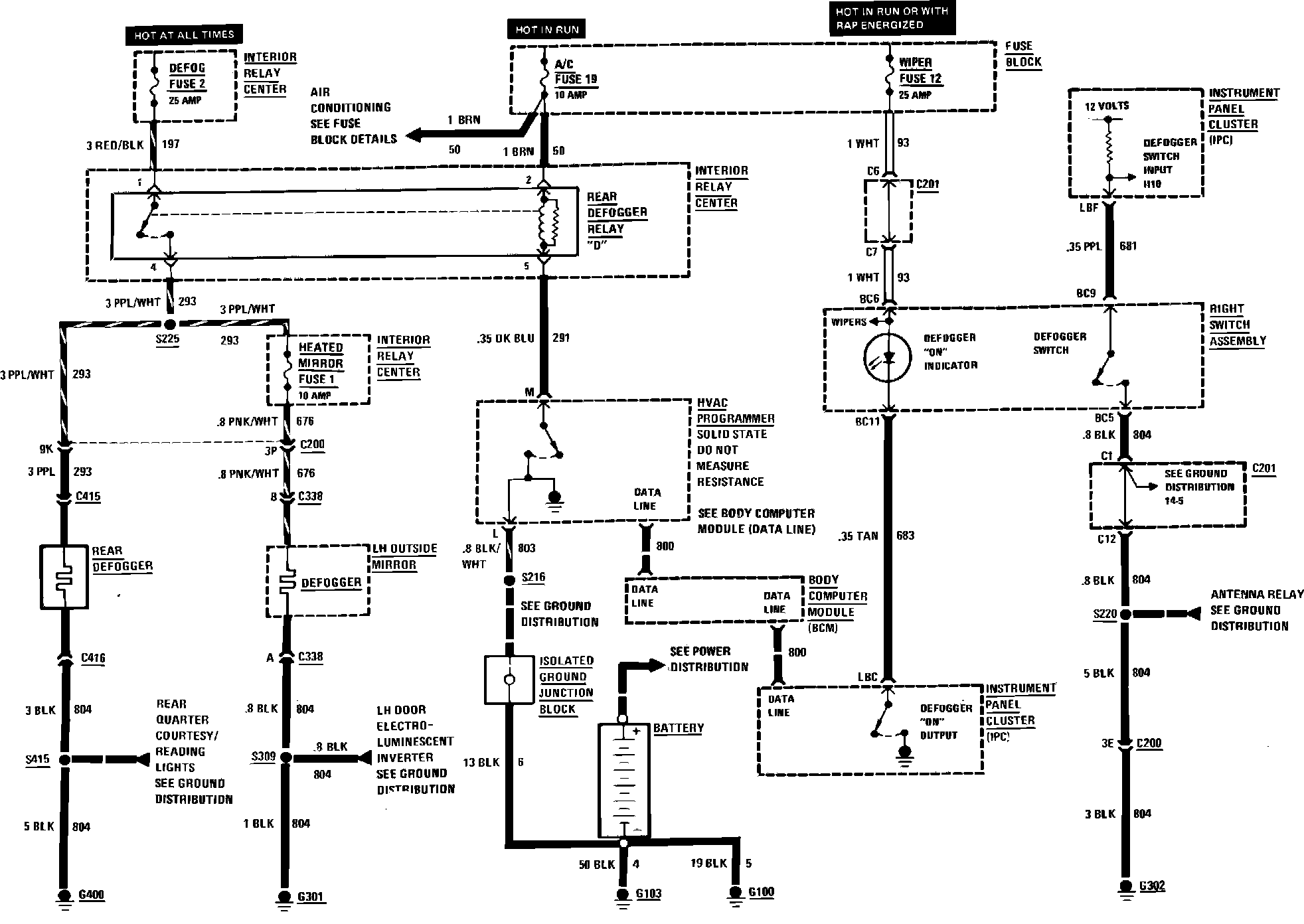

Defogger & LH Power Mirror Wiring Circuit:
