Home
>>
Buick
>>
1987
>>
Riviera V6-231 3.8L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

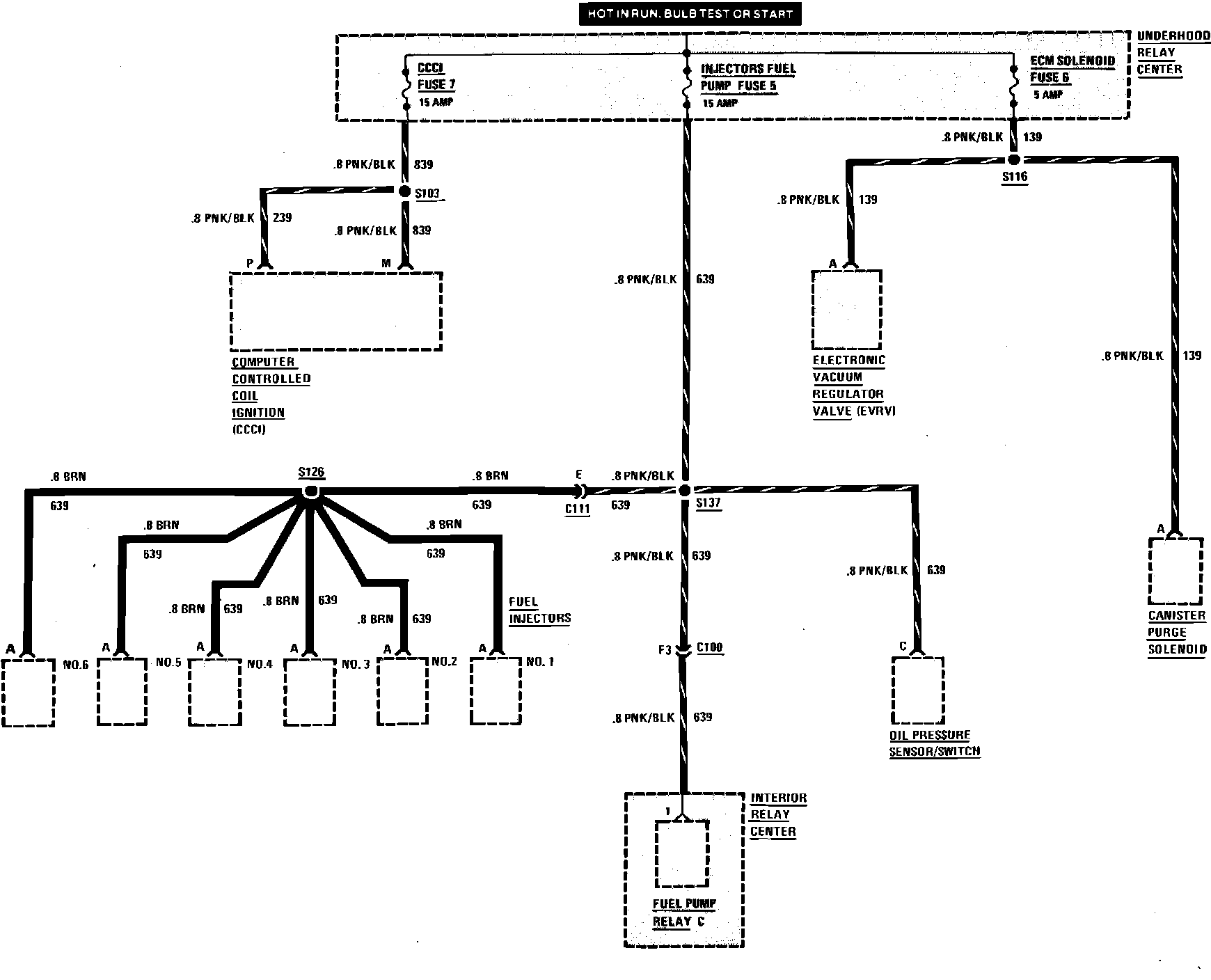

Fuse 5, 6 & 7
Fuse 5, 6 & 7
Fuse Block Details (Fuses 5, 6 & 7):
