Home >> Buick >> 1987 >> Riviera V6-231 3.8L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuse 18, 19, 20 & Circuit Breaker 24

Fuse 18, 19, 20 & Circuit Breaker 24

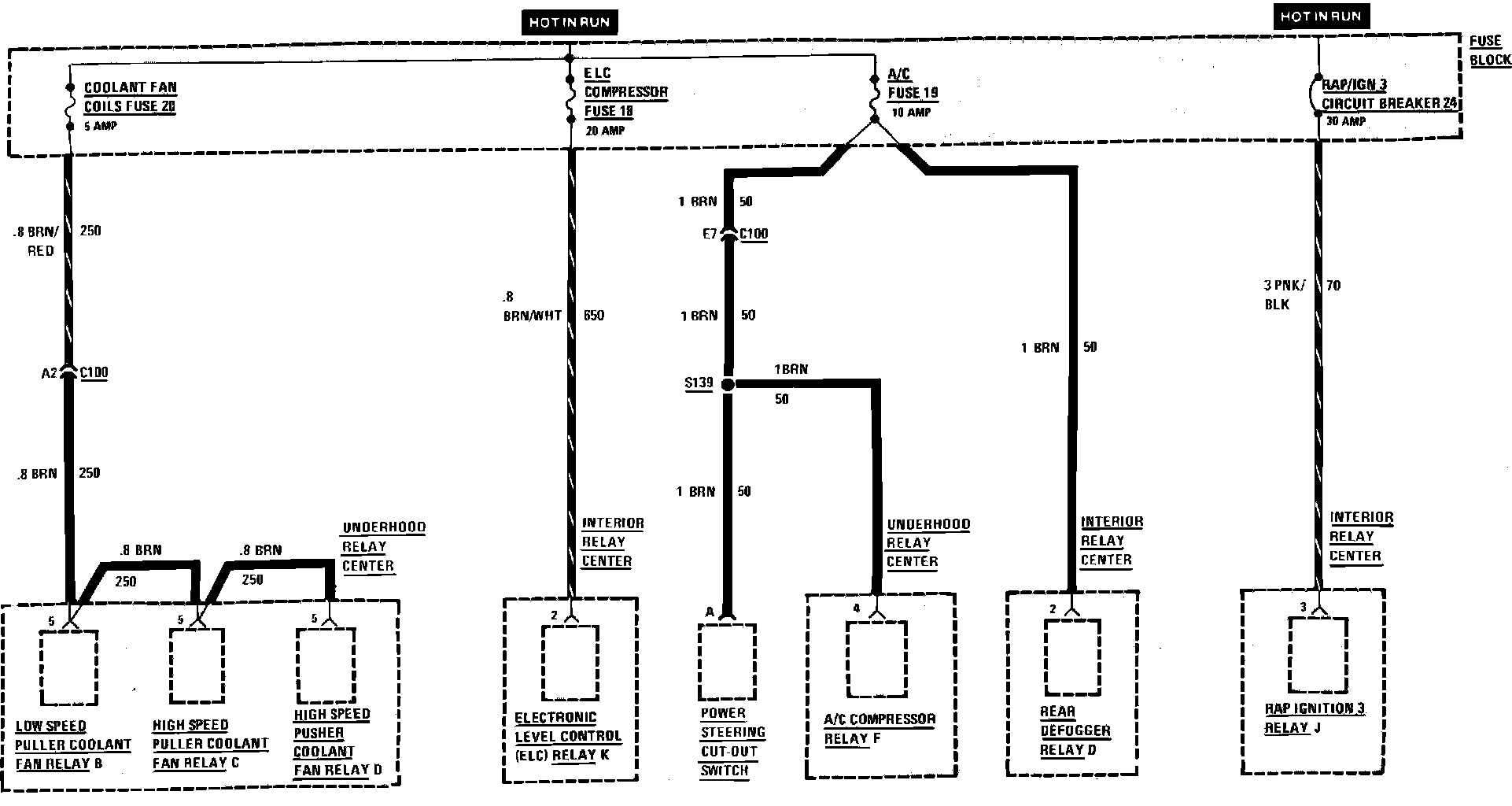

Fuse Block Details (Fuses 18, 19, 20 & Circuit Breaker 24):
