Home
>>
Buick
>>
1987
>>
Riviera V6-231 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G100
G100

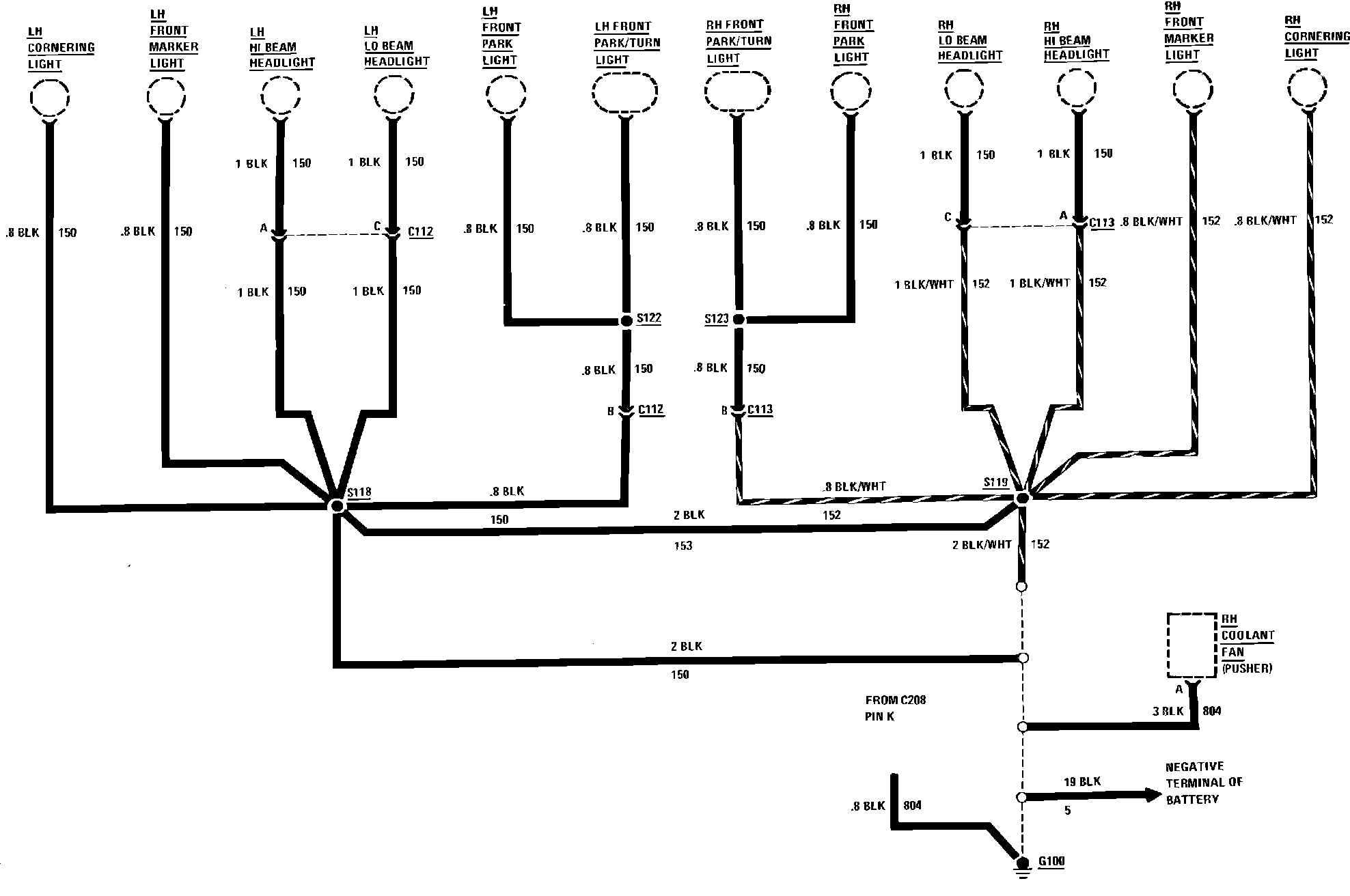

Ground Distribution. G100:
