Buick
>>
1987
>>
Riviera V6-231 3.8L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

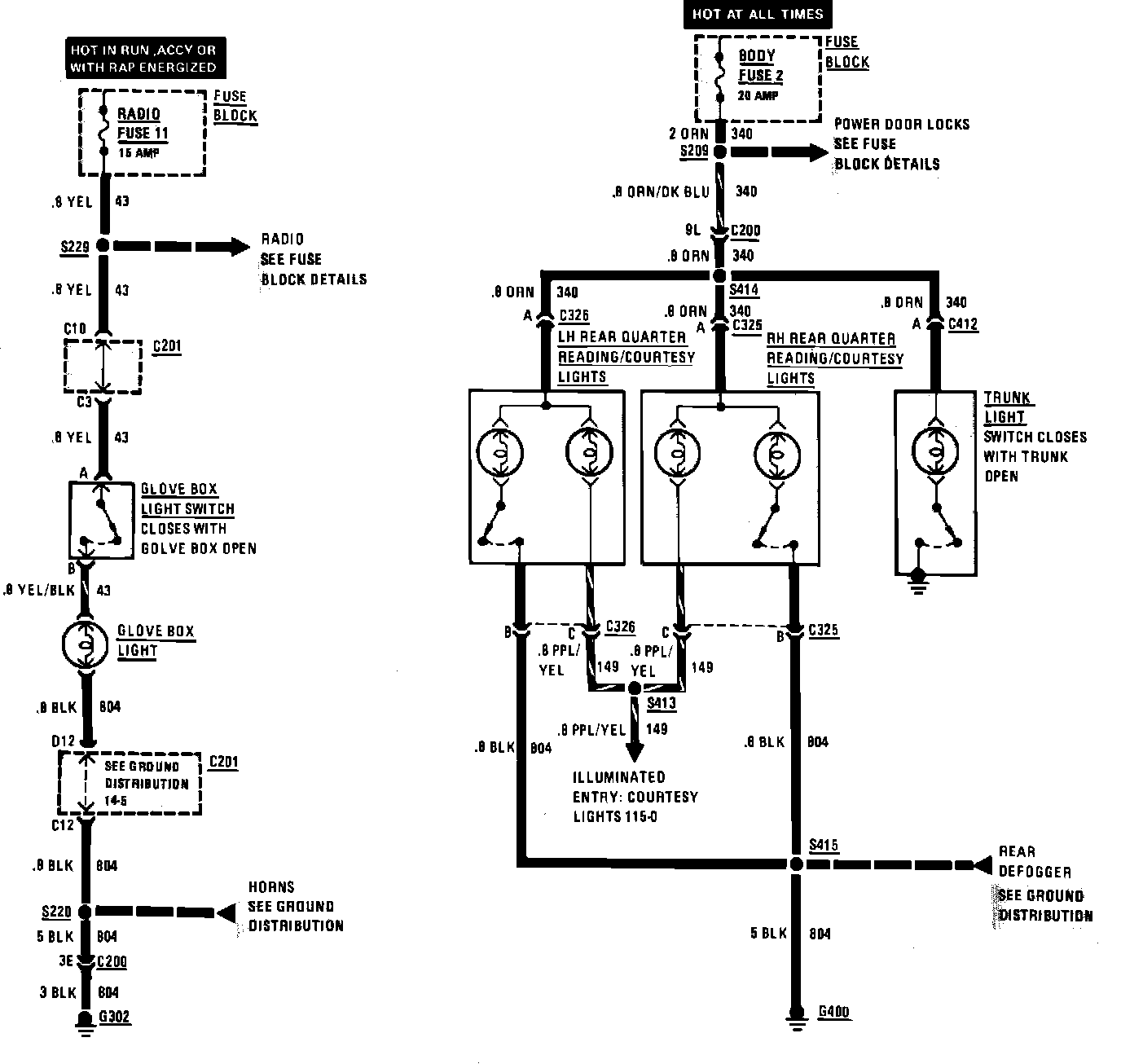

Interior Lights Wiring Circuit (Rear Quarter, Trunk & Glove Box):
