Home >> Buick >> 1987 >> Riviera V6-231 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Fuse 11, 12 & 13

Fuse 11, 12 & 13

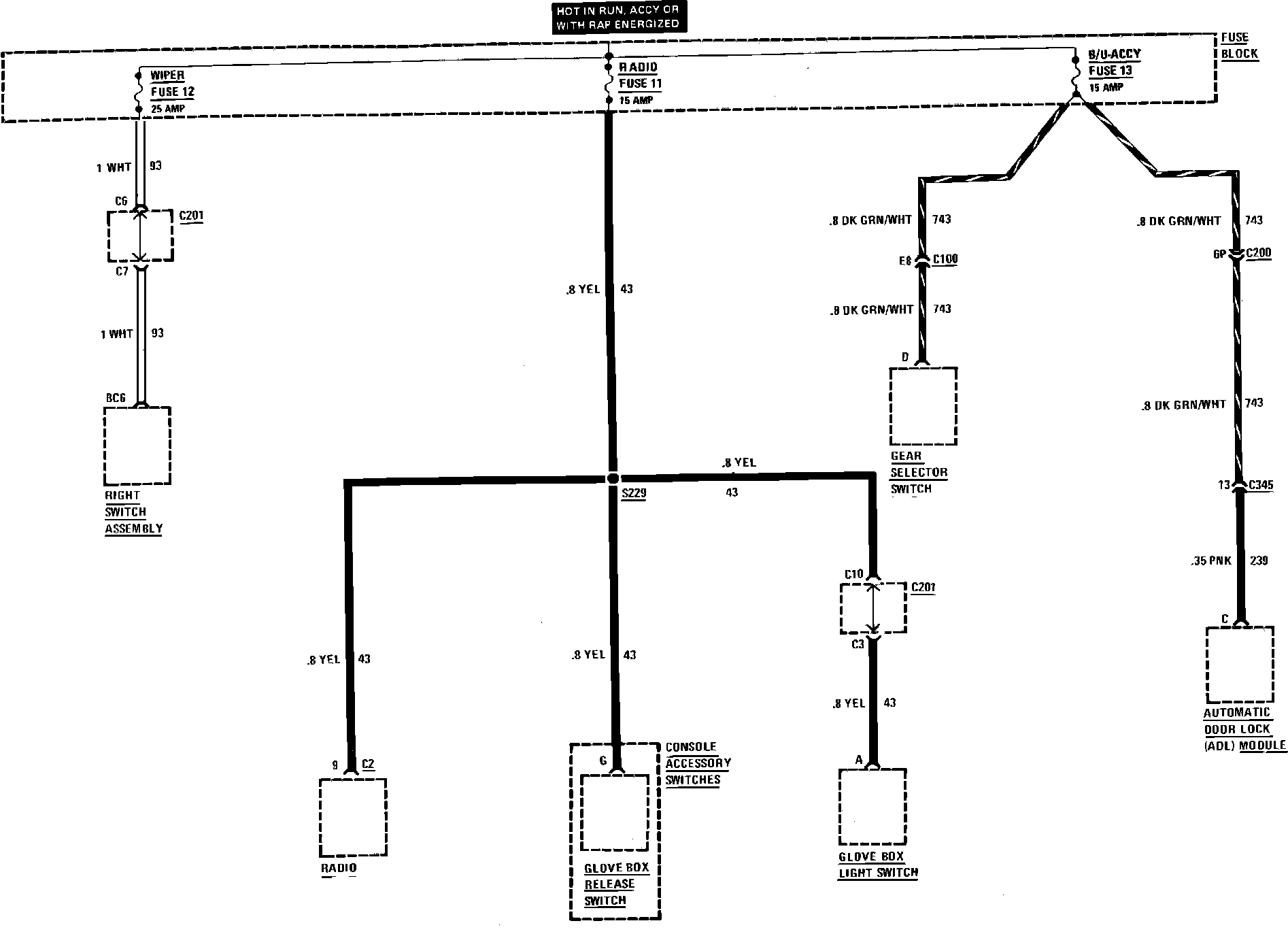

Fuse Block Details (Fuses 11, 12 & 13):
