Home >> Buick >> 1987 >> Riviera V6-231 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seat Wiring Circuit >> Less Memory, Part 2 of 2

Less Memory, Part 2 of 2

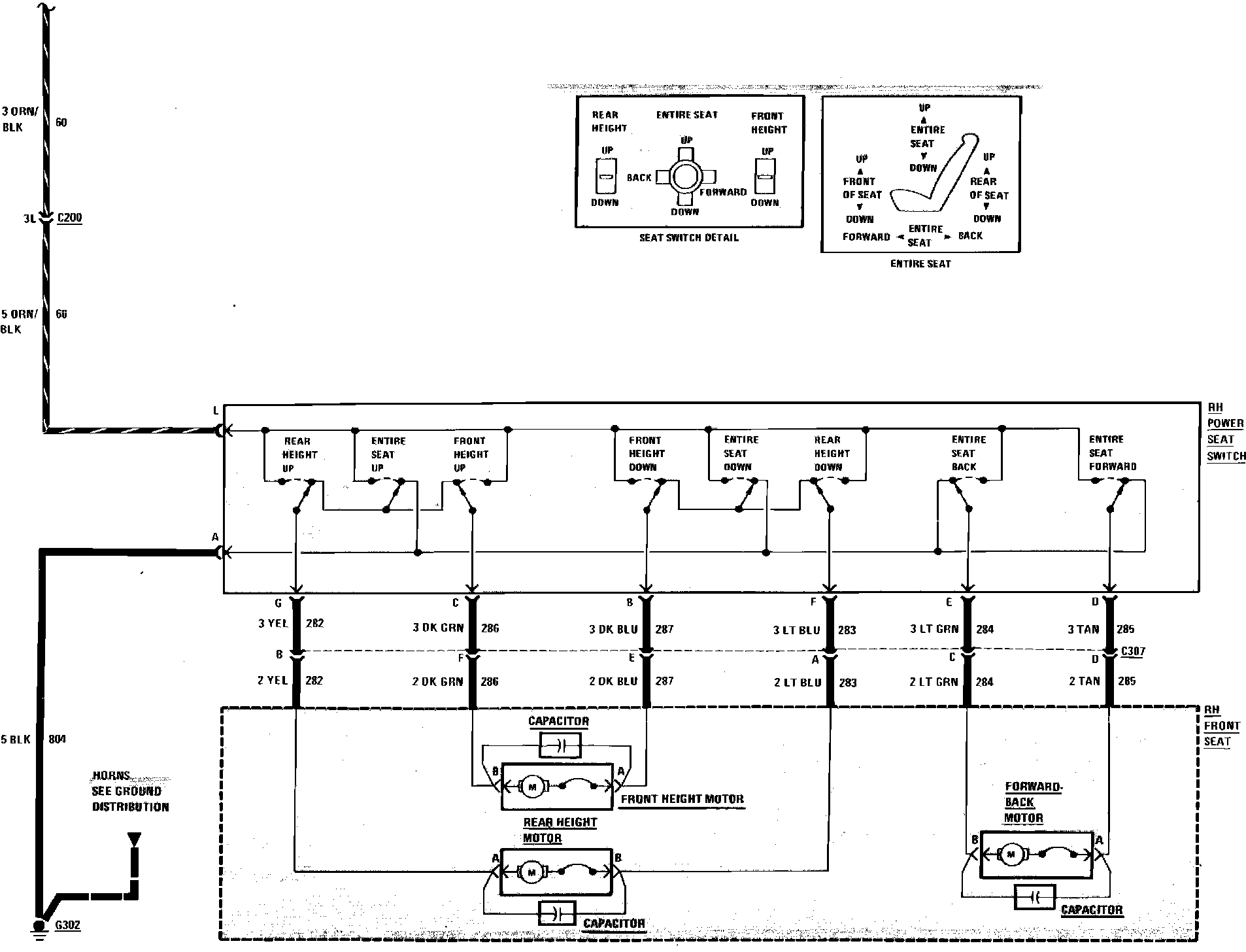

Power Seats Wiring Circuit Less Memory, Part 2 Of 2:
