Antenna
Antenna

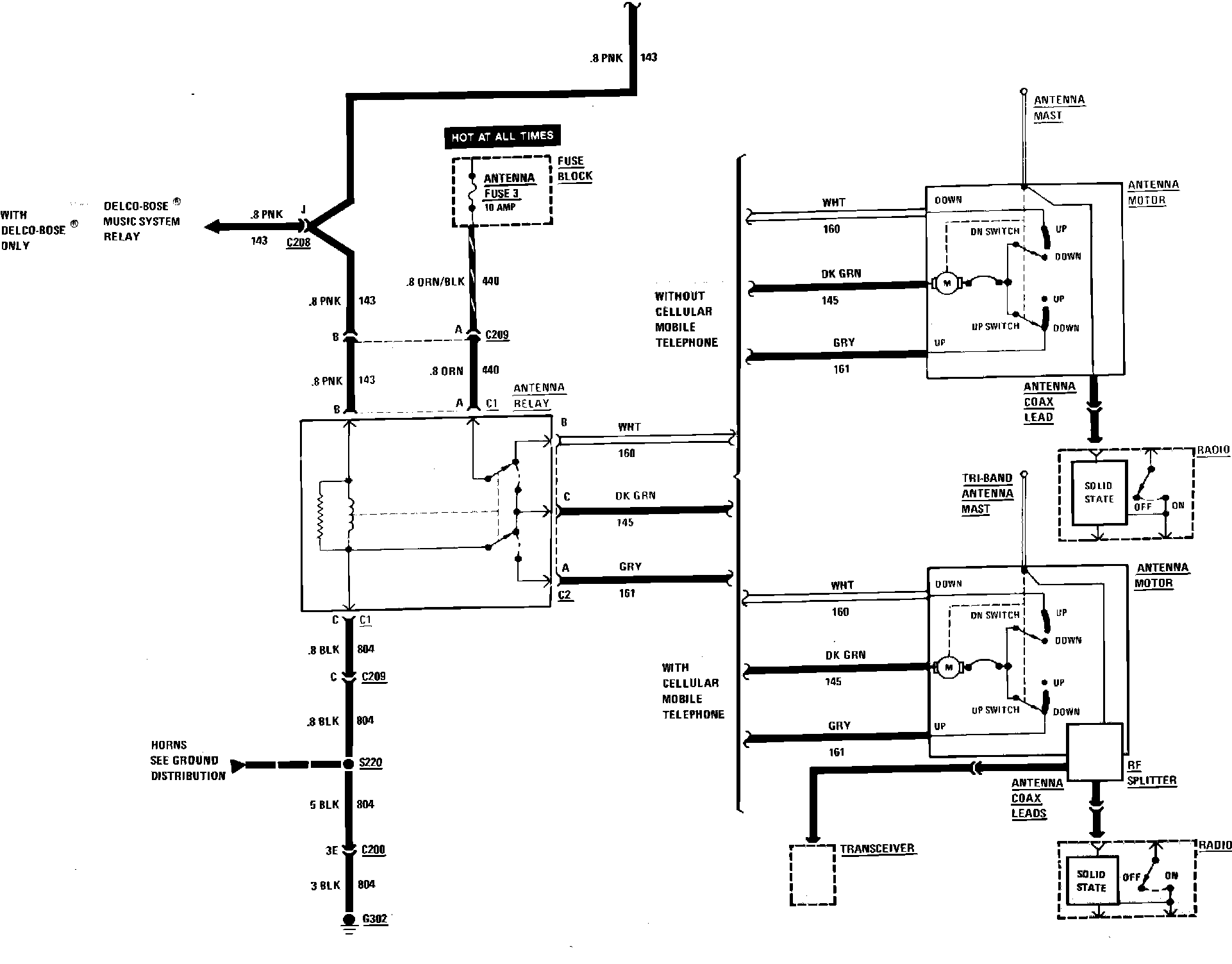

Power Antenna Wiring Circuit (Part 1 Of 2):

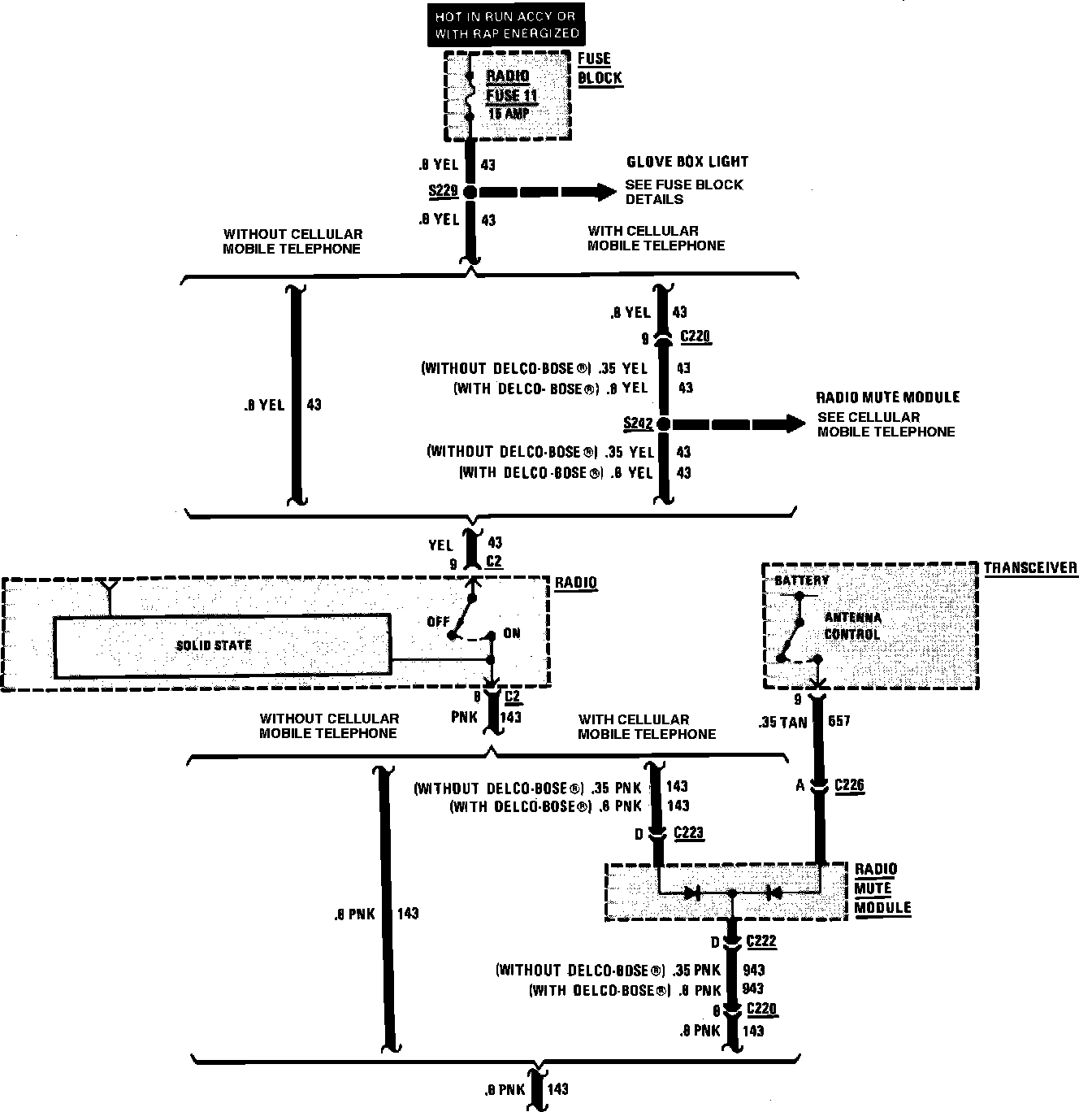

Power Antenna Wiring Circuit (Part 2 Of 2):
