Instrument Cluster Assembly

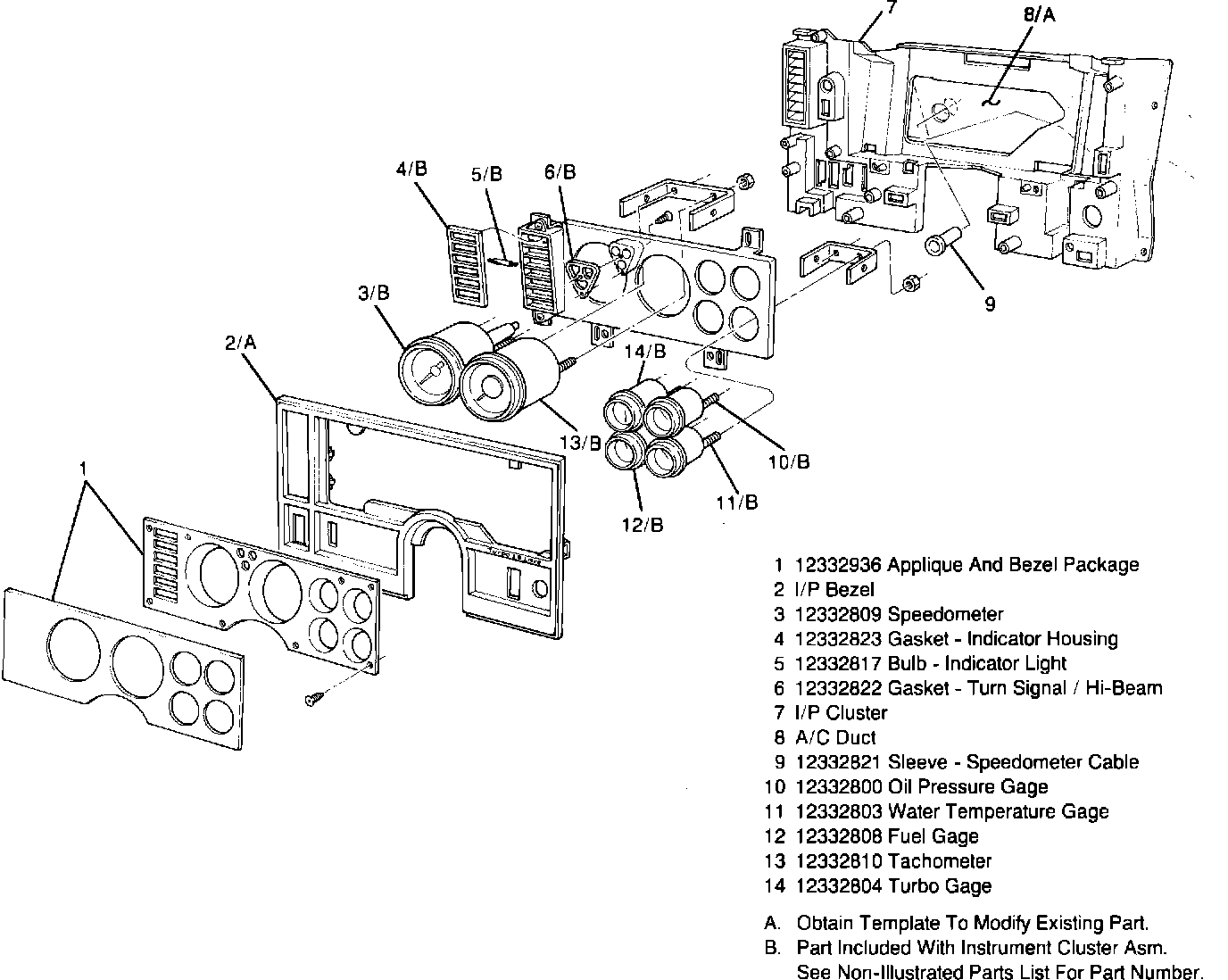

FIGURE 23 - I/P GAGES:

vRemove or Disconnect See Figure 23

1. Left hand trim cover.
2. Screw attaching cluster to I/P.
3. Speedometer cable from the split in the engine compartment if two-piece cable is used or transmission in order to gain slack.
4. Steering column trim cover.
5. Lower the steering column.
6. Pull the cluster forward far enough to disconnect the speedometer cable, turbo vacuum line and all wire connectors.
7. Cluster assembly.

vInstall or Connect

1. Wire connectors, turbo gage vacuum line and speedometer cable to cluster.
2. Push cluster into position on I/P.
3. Screws attaching cluster to I/P.
4. Raise the steering column.
5. Steering column trim cover.
6. Left hand trim cover.
7. Speedometer cable to the spilt in the engine compartment if two-piece cable is used or transmission.

FUEL GAGE

vRemove or Disconnect See Figure 23

1. Instrument cluster assembly (see procedure).
2. Nuts attaching wire leads to gage.
3. Lamp from gage.
4. Nuts and ground wire from gage bracket.
5. Fuel gage.

vInstall or Connect

1. Fuel gage to cluster.
2. Gage bracket to gage.
3. Ground wire and nuts to secure gage.
4. Wire leads to gage and secure with nuts.
5. Lamp to gage.
6. Instrument cluster assembly (see procedure).

TACHOMETER

vRemove or Disconnect See Figures 22 & 23

1. Instrument cluster assembly (see procedure).
2. Lamp from tachometer.
3. Nuts from tachometer bracket.
4. Nuts attaching wire leads to tachometer.
5. Tachometer.

vInstall or Connect

1. Tachometer to cluster.
2. Wire leads to gage and secure with nuts.
3. Tachometer bracket to tachometer.
4. Nut to secure tachometer bracket.
5. Lamp to tachometer.
6. Instrument cluster assembly (see procedure).


OIL GAGE

vRemove or Disconnect See Figures 22 & 23

1. Instrument cluster assembly (see procedure).
2. Nuts attaching wire leads to gage.
3. Lamp from gage.
4. Nuts and ground wire from gage bracket.
5. Oil gage.

vInstall or Connect

1. Oil gage to cluster.
2. Gage bracket to gage.
3. Ground wire and nuts to secure gage.
4. Wire leads to gage and secure with nuts.
5. Lamp to gage.
6. Instrument cluster assembly (see procedure).

SPEEDOMETER

vRemove or Disconnect See Figure 23

1. Instrument cluster assembly (see procedure).
2. Lamp from speedometer.
3. Nuts and ground wire from speedometer bracket.
4. Speedometer.

vInstall or Connect

1. Speedometer to cluster.
2. Speedometer bracket to speedometer.
3. Ground wire and nuts to secure speedometer, 4. Lamp to speedometer.
5. Instrument cluster assembly (see procedure).


TEMPERATURE GAGE

vRemove or Disconnect See Figure 23

1. Instrument cluster assembly (see procedure).
2. Nuts attaching wire leads to gage.
3. Lamp from gage.
4. Nuts and ground wire from gage bracket.
5. Temperature gage.

vInstall or Connect

1. Temperature gage to cluster.
2. Gage bracket to gage.
3. Ground wire and nuts to secure gage.
4. Wire leads to gage and secure with nuts.
5. Lamp to gage.
6. Instrument cluster assembly (see procedure).

TURBO GAGE

vRemove or Disconnect See Figure 23

1. Instrument cluster assembly (see procedure).
2. Lamp from gage.
3. Nuts and ground wire from gage bracket.
4. Turbo gage.

vInstall or Connect

1. Turbo gage to cluster.
2. Gage bracket to gage.
3. Ground wire and nuts to secure gage.
4. Lamp to gage.
5. Instrument cluster assembly (see procedure).
