Buick
>>
1987
>>
Regal V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

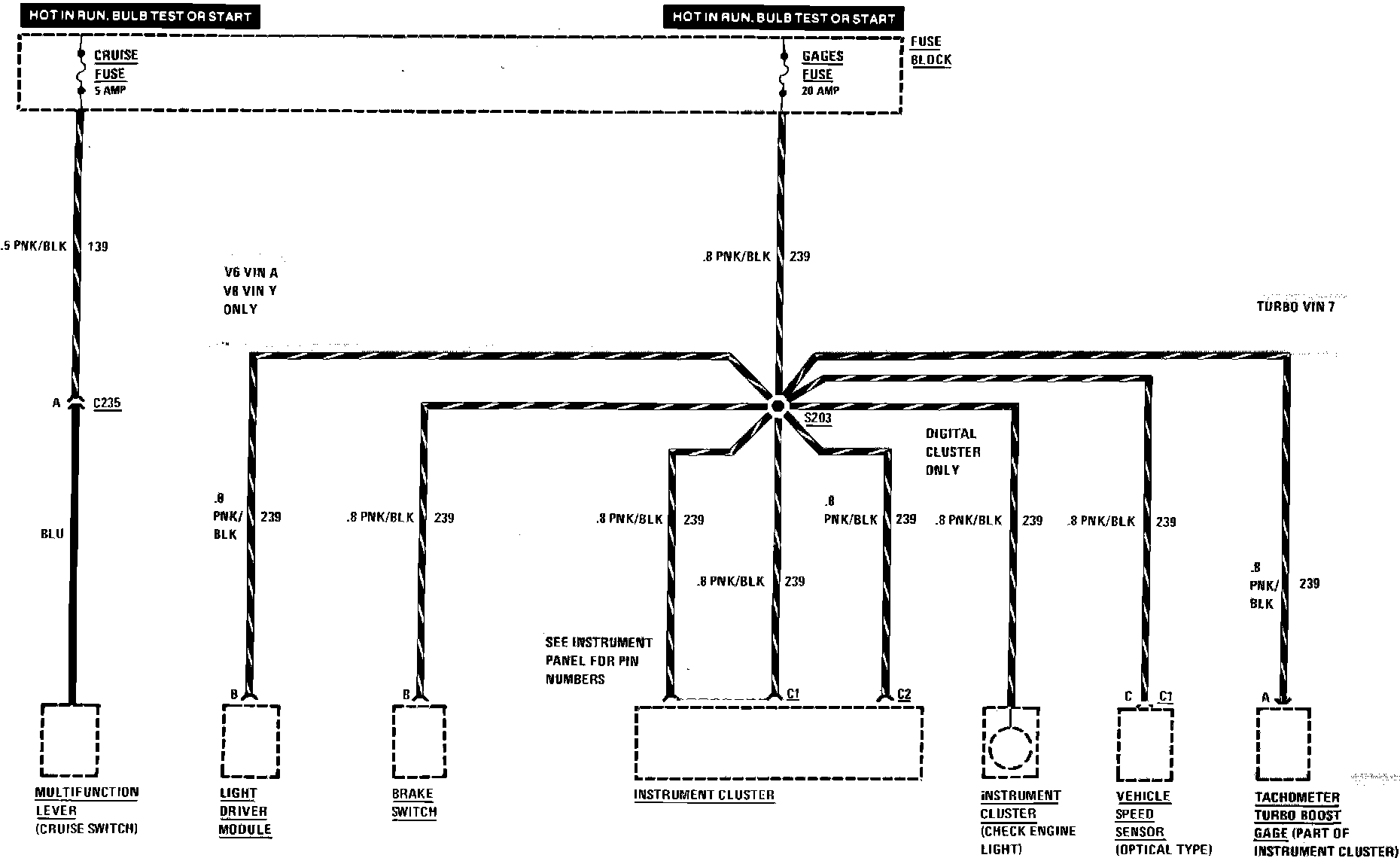

Cruise Fuse & Gauges Fuse
Cruise Fuse & Gauges Fuse
Fuse Block Details (Cruise Fuse & Gauges Fuse):
