Home >> Buick >> 1987 >> Regal V8-307 5.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> CIG-CLK Fuse, Part 2 of 2

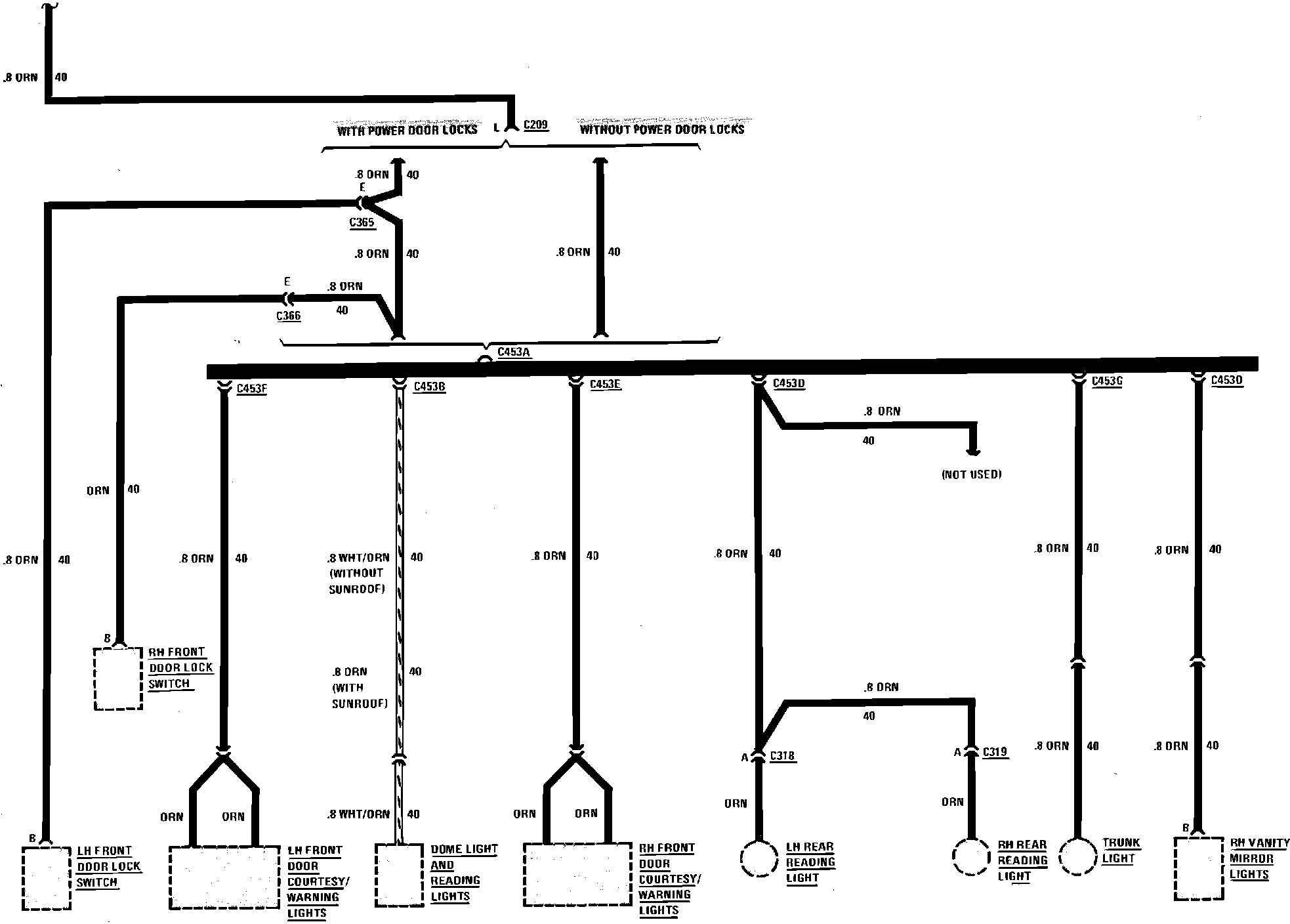

CIG-CLK Fuse, Part 2 of 2

Fuse Block Details (CIG-CLK Fuse):
