Buick
>>
1987
>>
Regal V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G102 & G103
G102 & G103

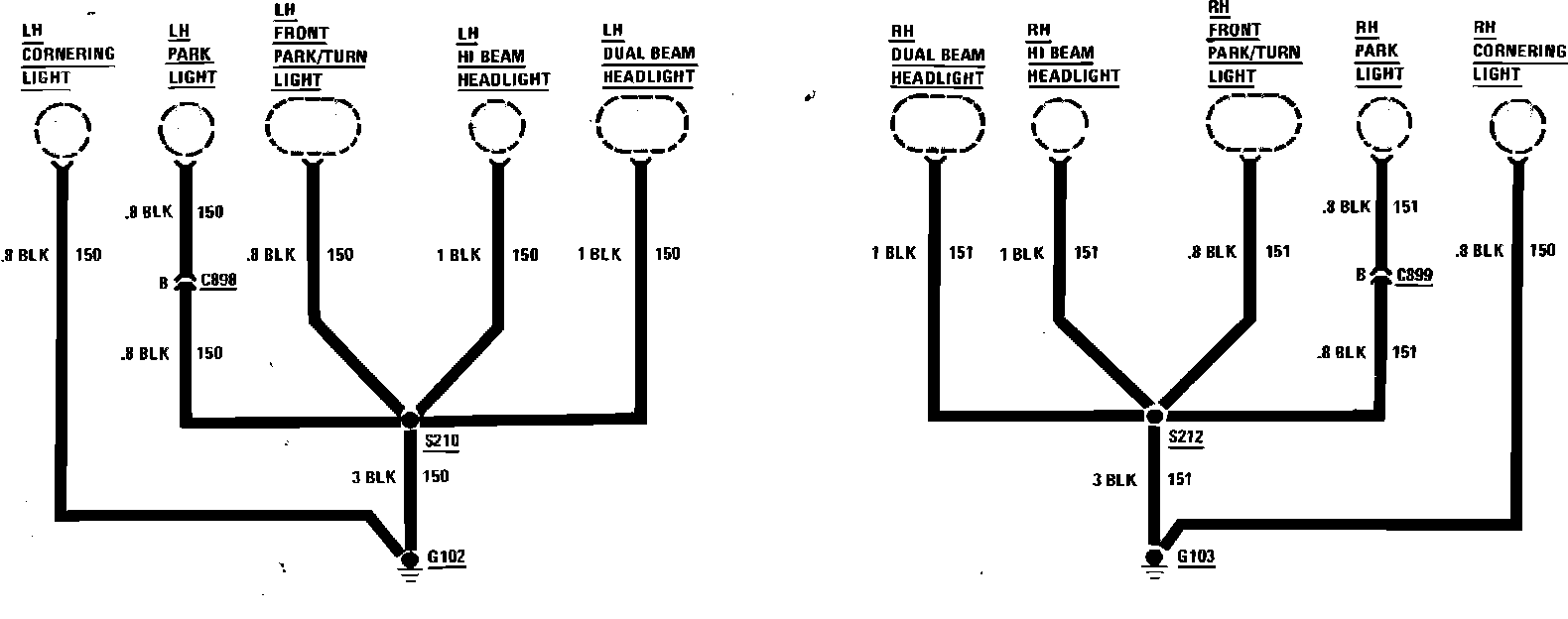

Ground Distribution G102 & G103:
