Buick
>>
1987
>>
Regal V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Distribution
>>
G177
G177

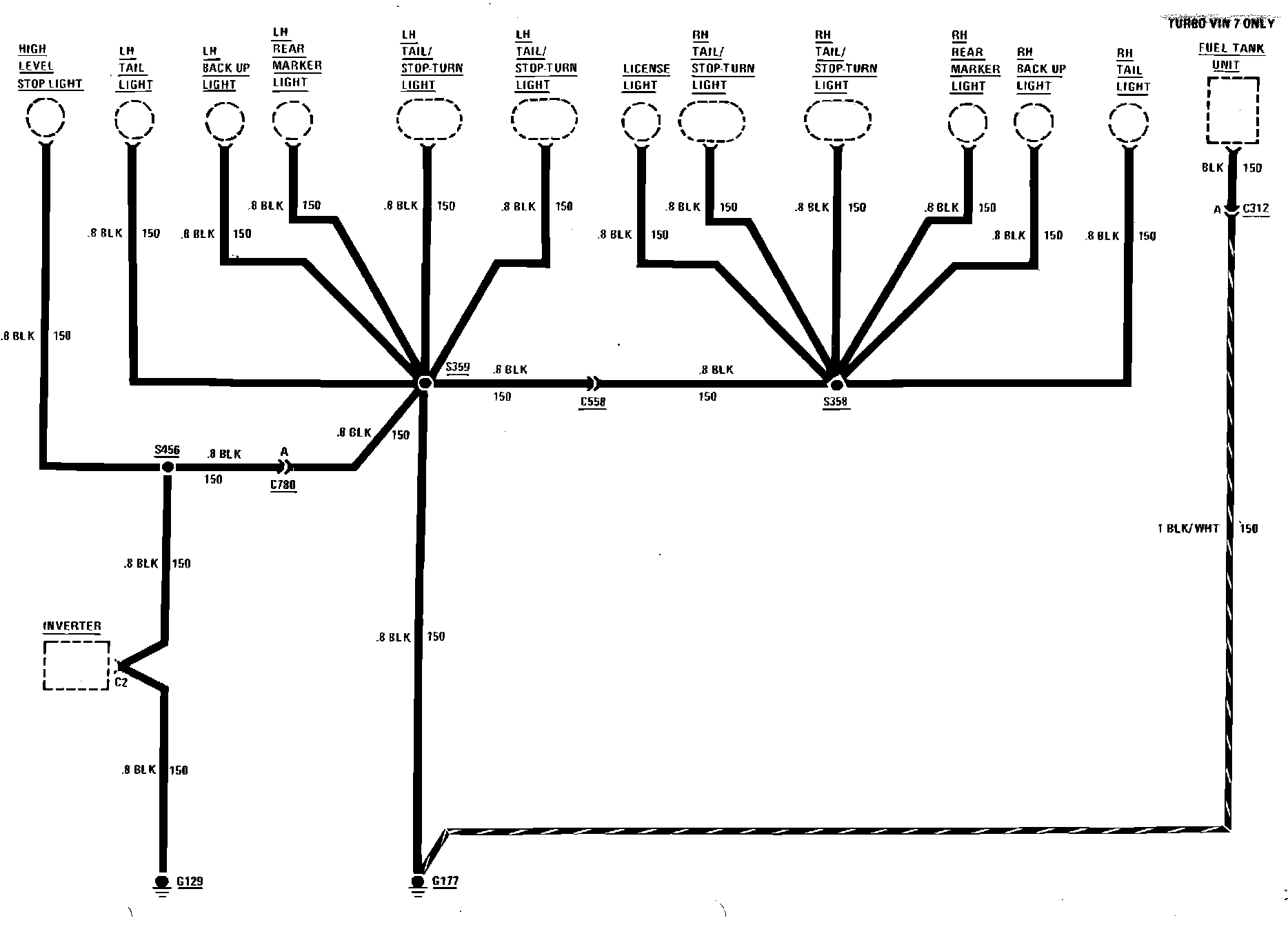

Ground Distribution G177:
