Home
>>
Buick
>>
1987
>>
Regal V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
ST BLT/ACC Fuse & Turn Back-Up Fuse
ST BLT/ACC Fuse & Turn Back-Up Fuse

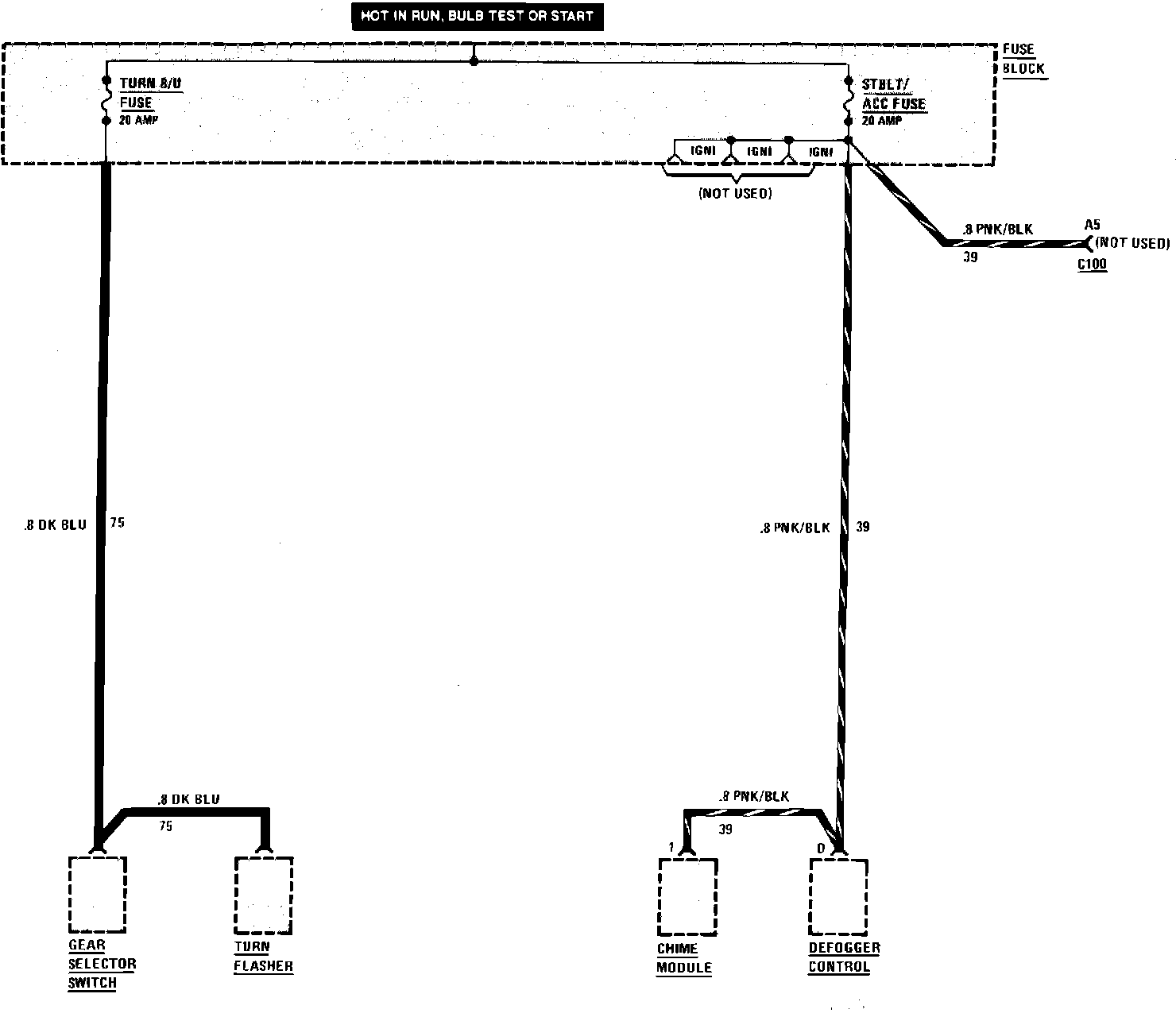

Fuse Block Details (ST BLT/ACC Fuse & Turn Back-Up Fuse):
