Home
>>
Buick
>>
1987
>>
Regal V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Inst LPS Fuse
Inst LPS Fuse

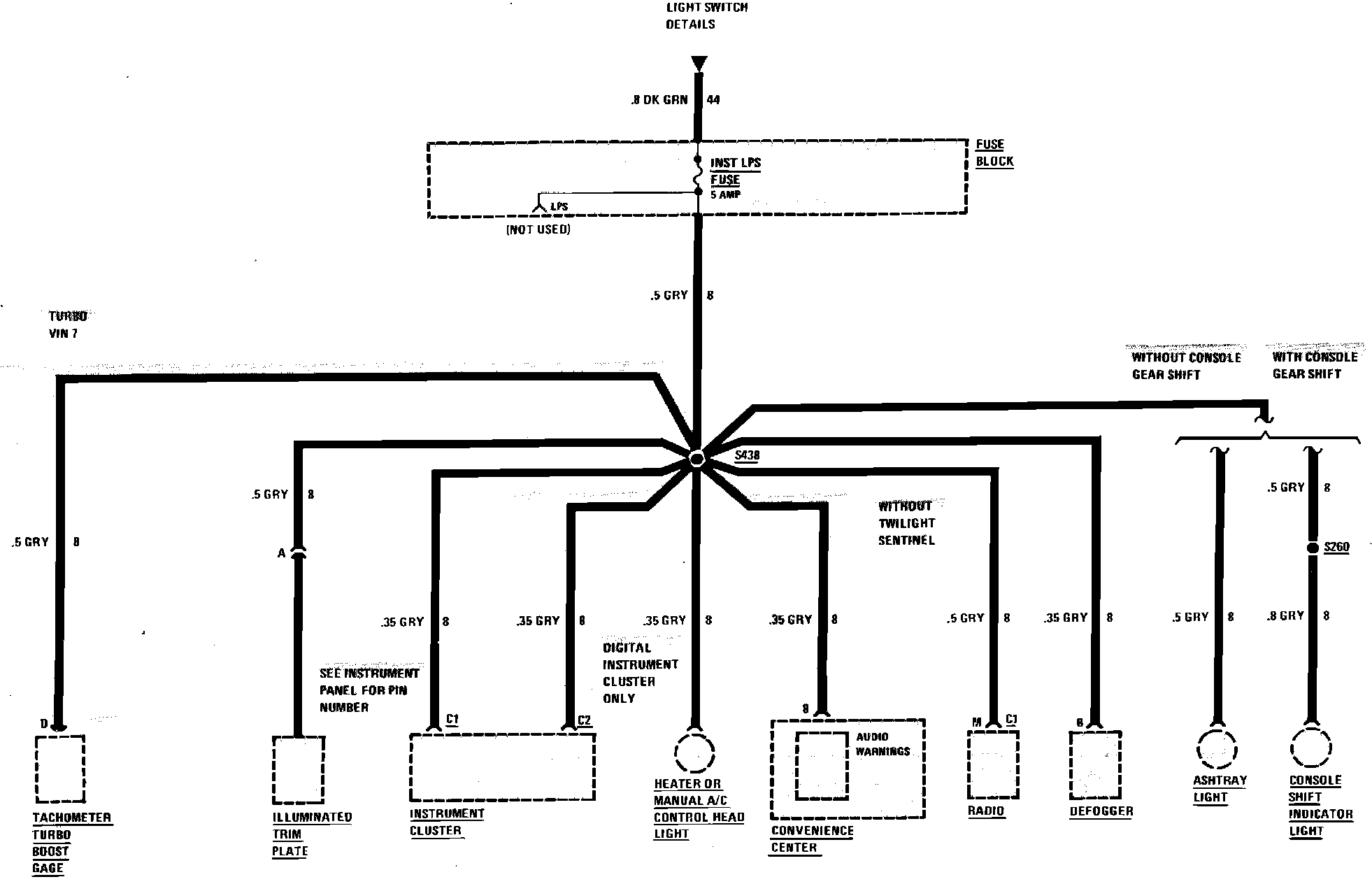

Fuse Block Details (INST LPS Fuse):
