Buick
>>
1987
>>
Regal V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Electronically Tuned AM/FM Stereo
Electronically Tuned AM/FM Stereo

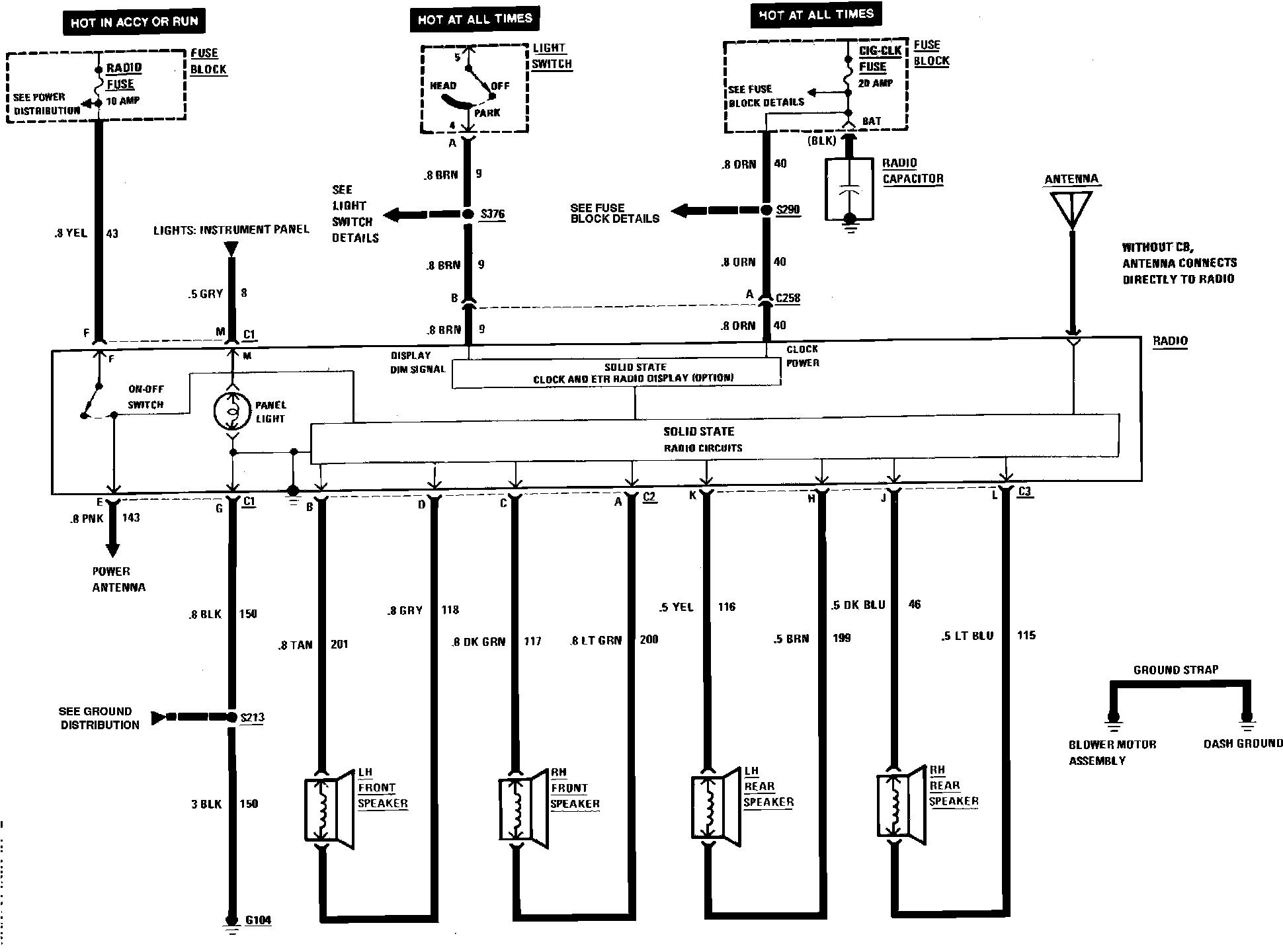

Radio Wiring Circuit (With Stereo System (Four Speakers)):
