6 Speaker System Wiring Circuit
6 Speaker System Wiring Circuit

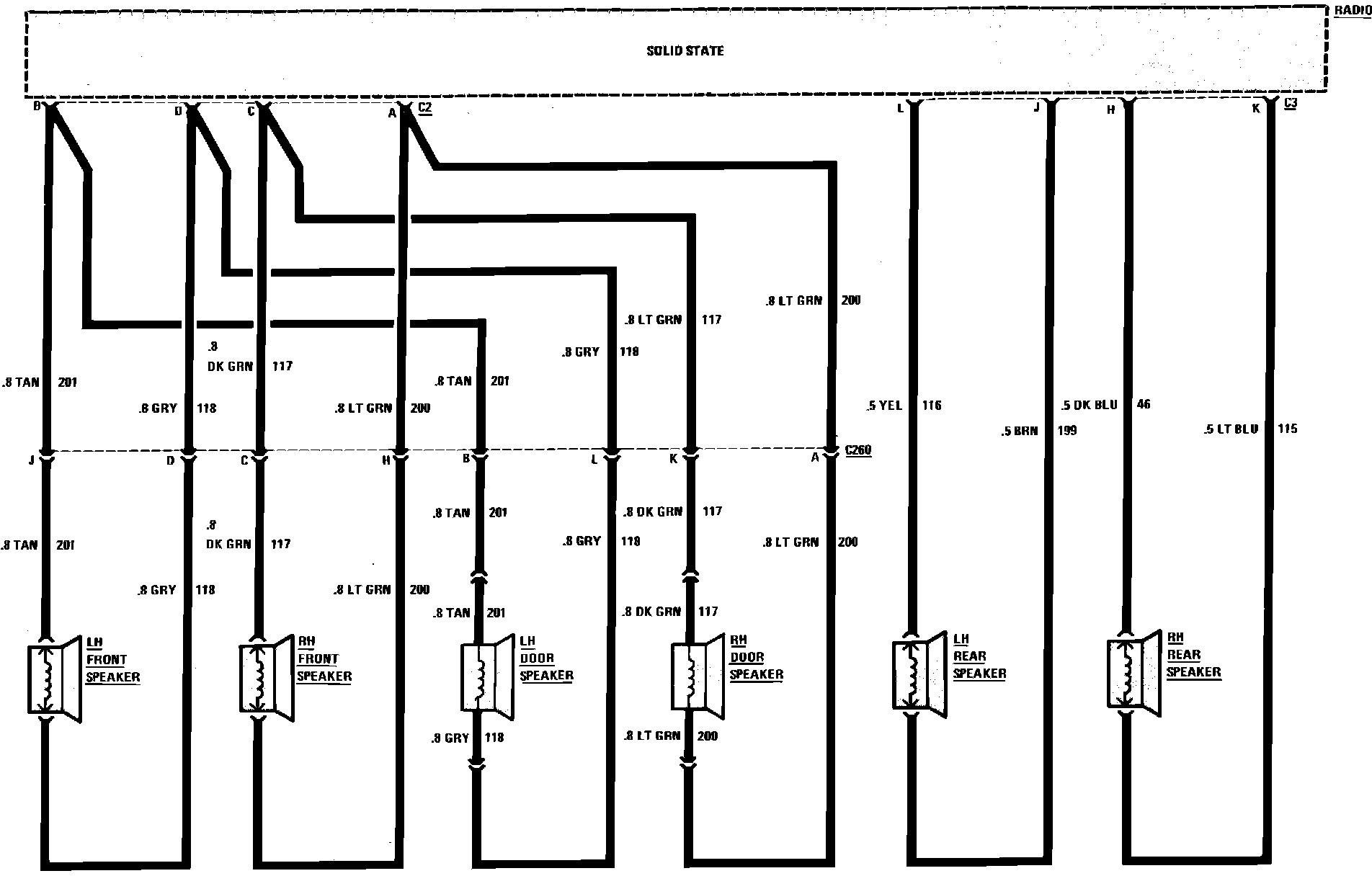

Radio Wiring Circuit (With Stereo System (Six Speakers)):
