Buick
>>
1987
>>
Regal V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Vanity Lamp
Vanity Lamp

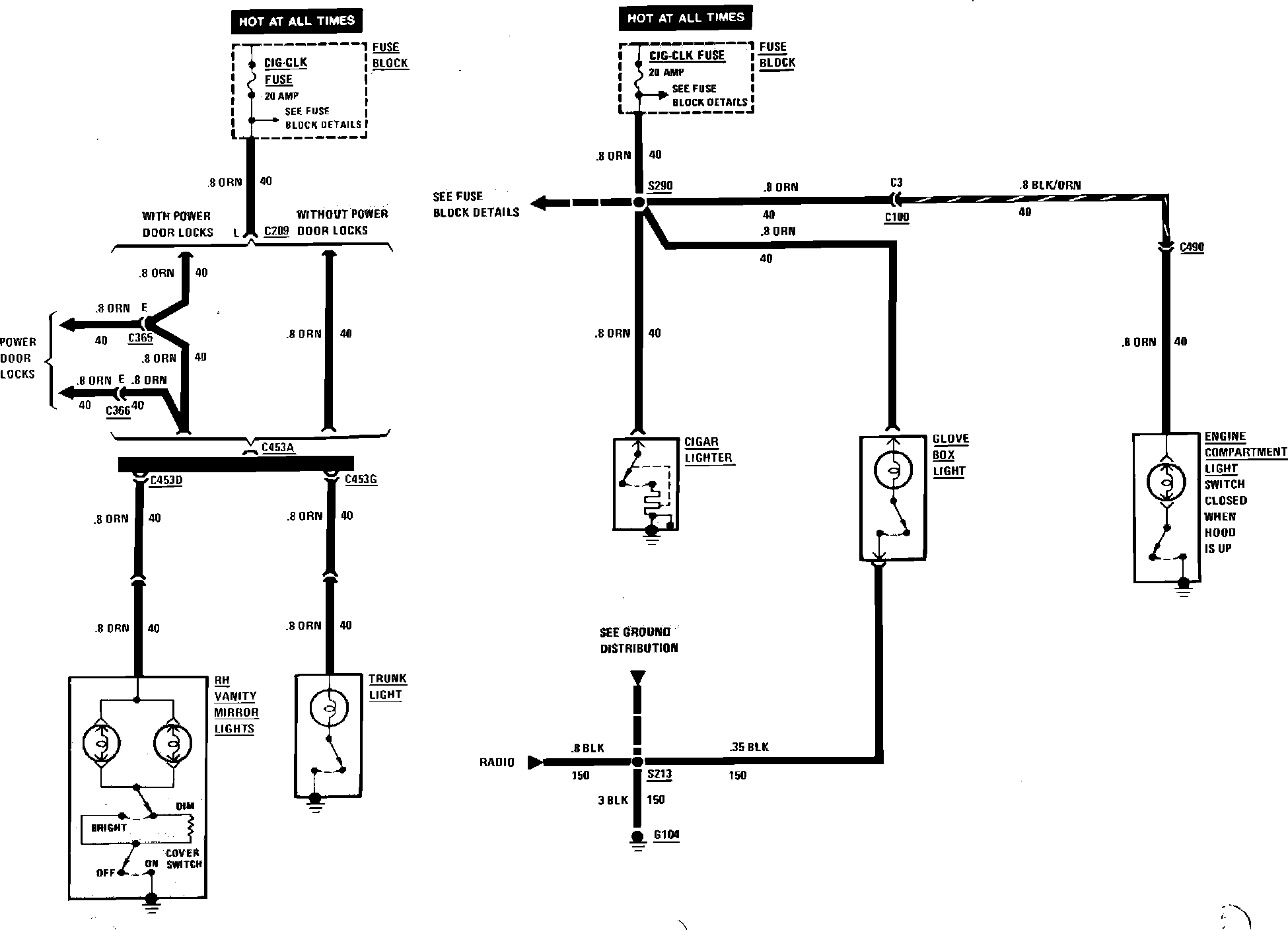

Interior Lamp Wiring Circuit (Front Cigar Lighter, Clock, Glove Box, Engine, Trunk & Vanity Lamp):
