Home
>>
Buick
>>
1987
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
LeSabre
>>
Fuse 8
Fuse 8

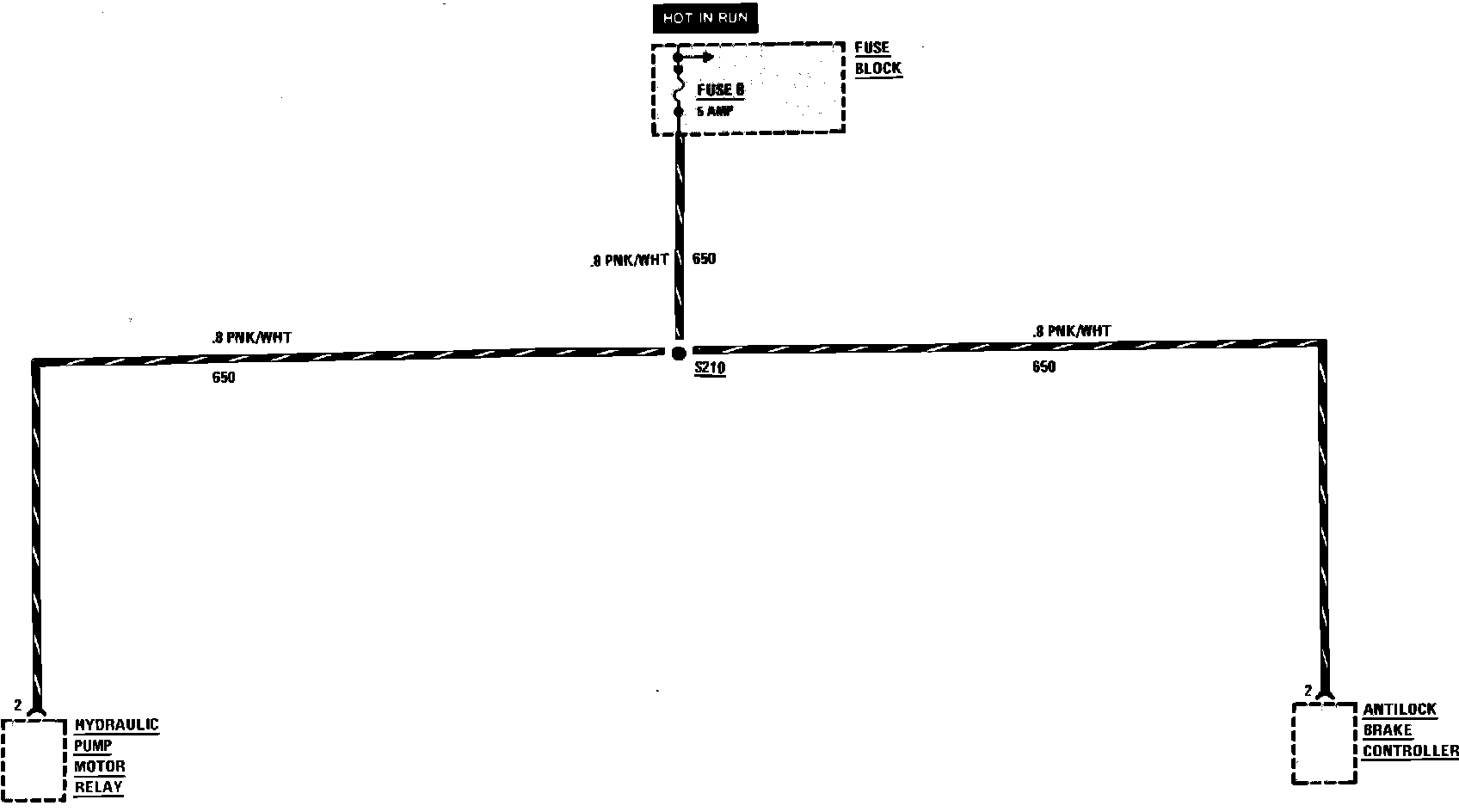

Fuse Block Details (Fuse 8):
