Home >> Buick >> 1987 >> LeSabre V6-231 3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> LeSabre >> Fuse 10 >> Part 1 of 2

Part 1 of 2

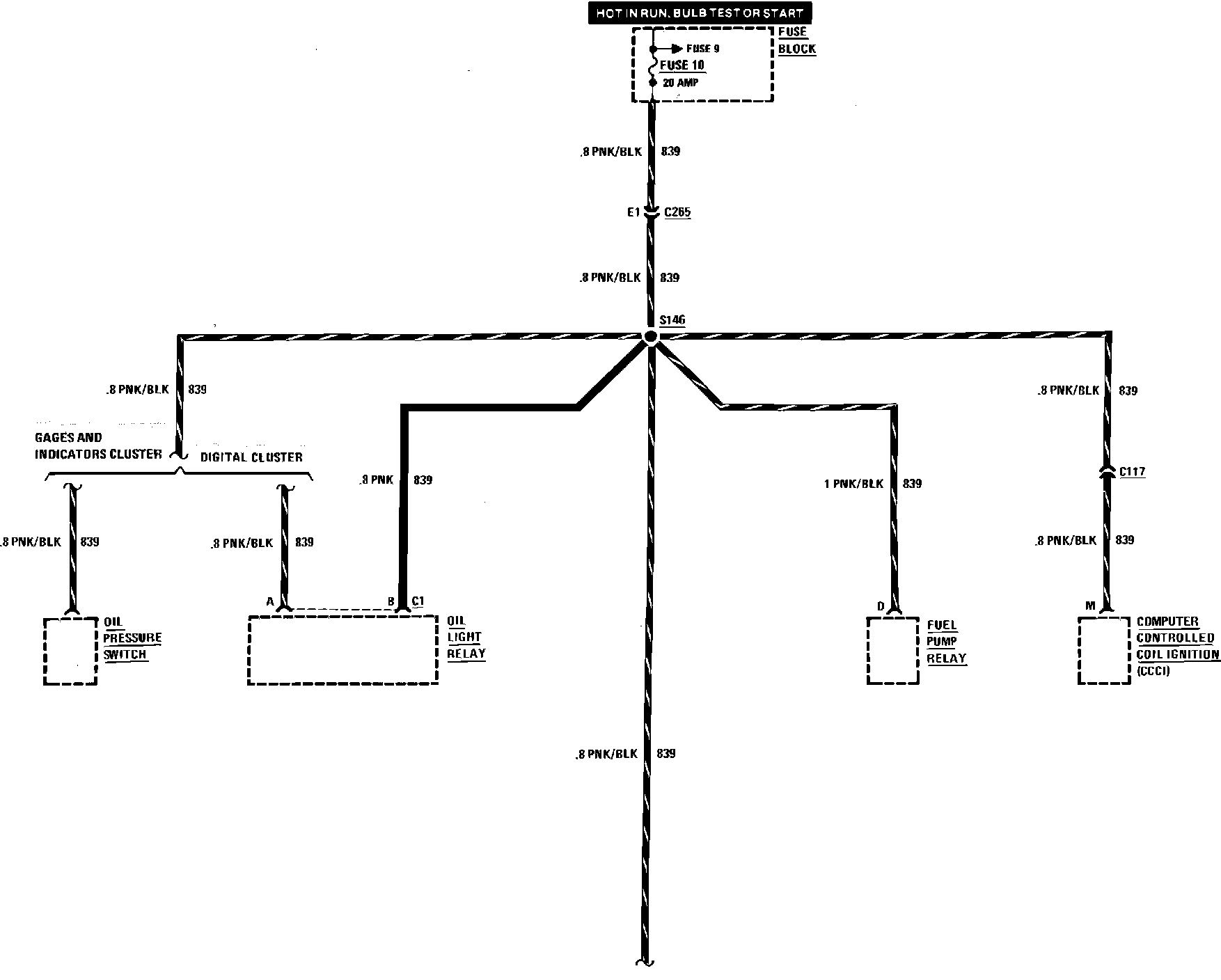

Fuse Block Details (Fuse 10):
