Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Buick
>>
1987
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Electra
>>
Fuse 15
>>
Part 2 of 3
Part 2 of 3

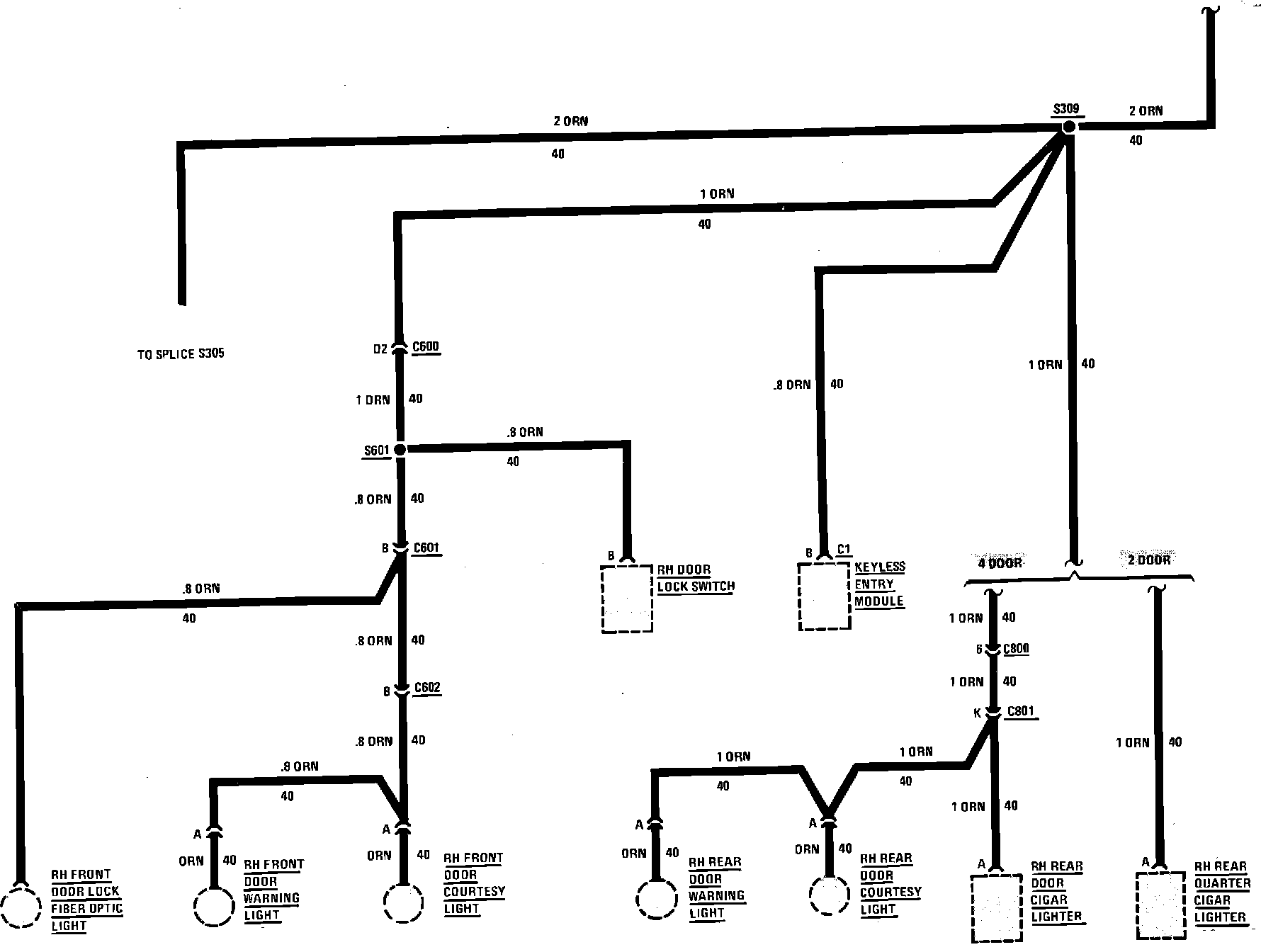

Fuse Block Details (Fuse 15):
