Home
>>
Buick
>>
1987
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

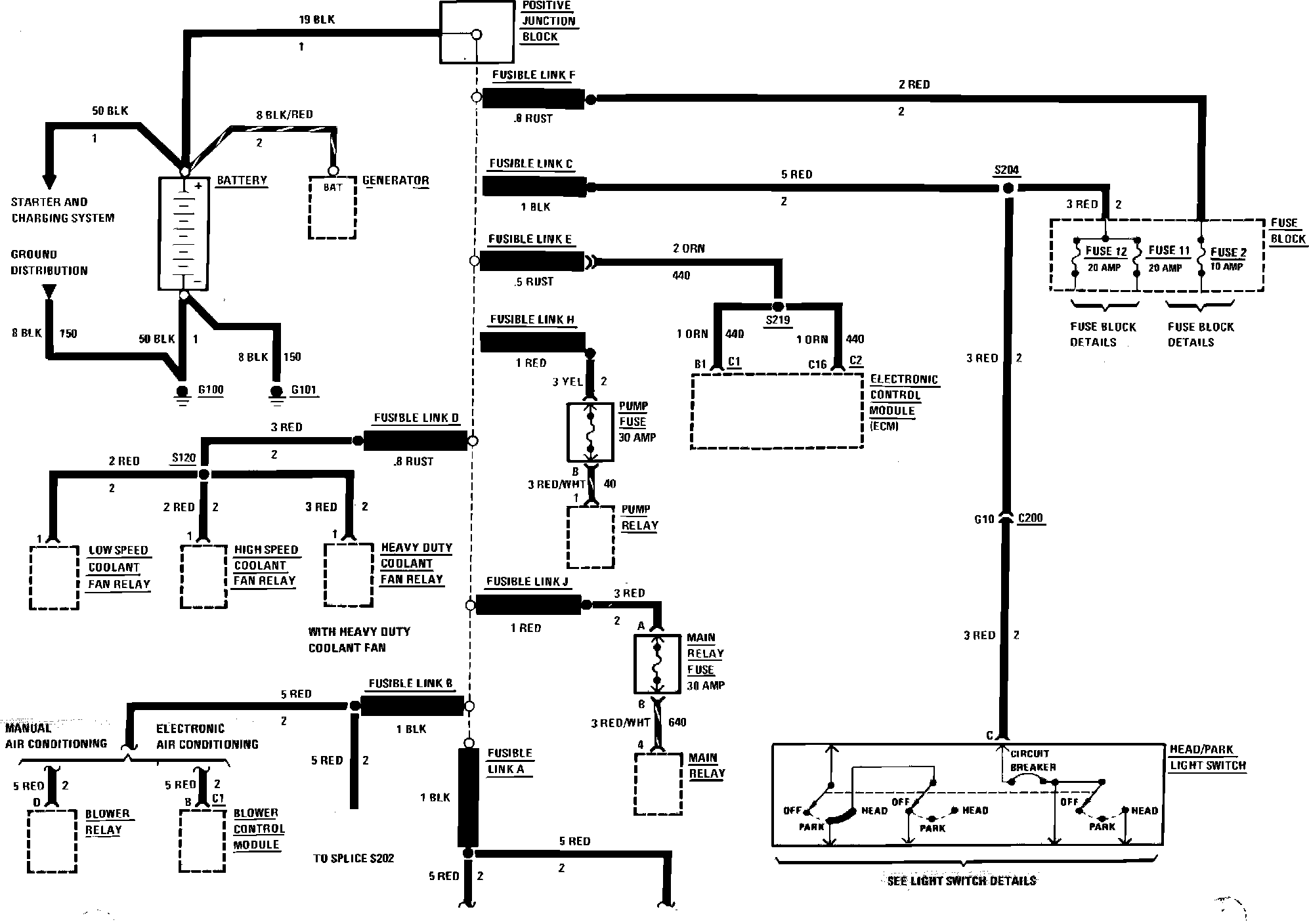

Power Distribution Wiring Circuit
>>
Electra, Part 1 of 3
Electra, Part 1 of 3
Power Distribution:
