Buick
>>
1987
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
>>
Electra
>>

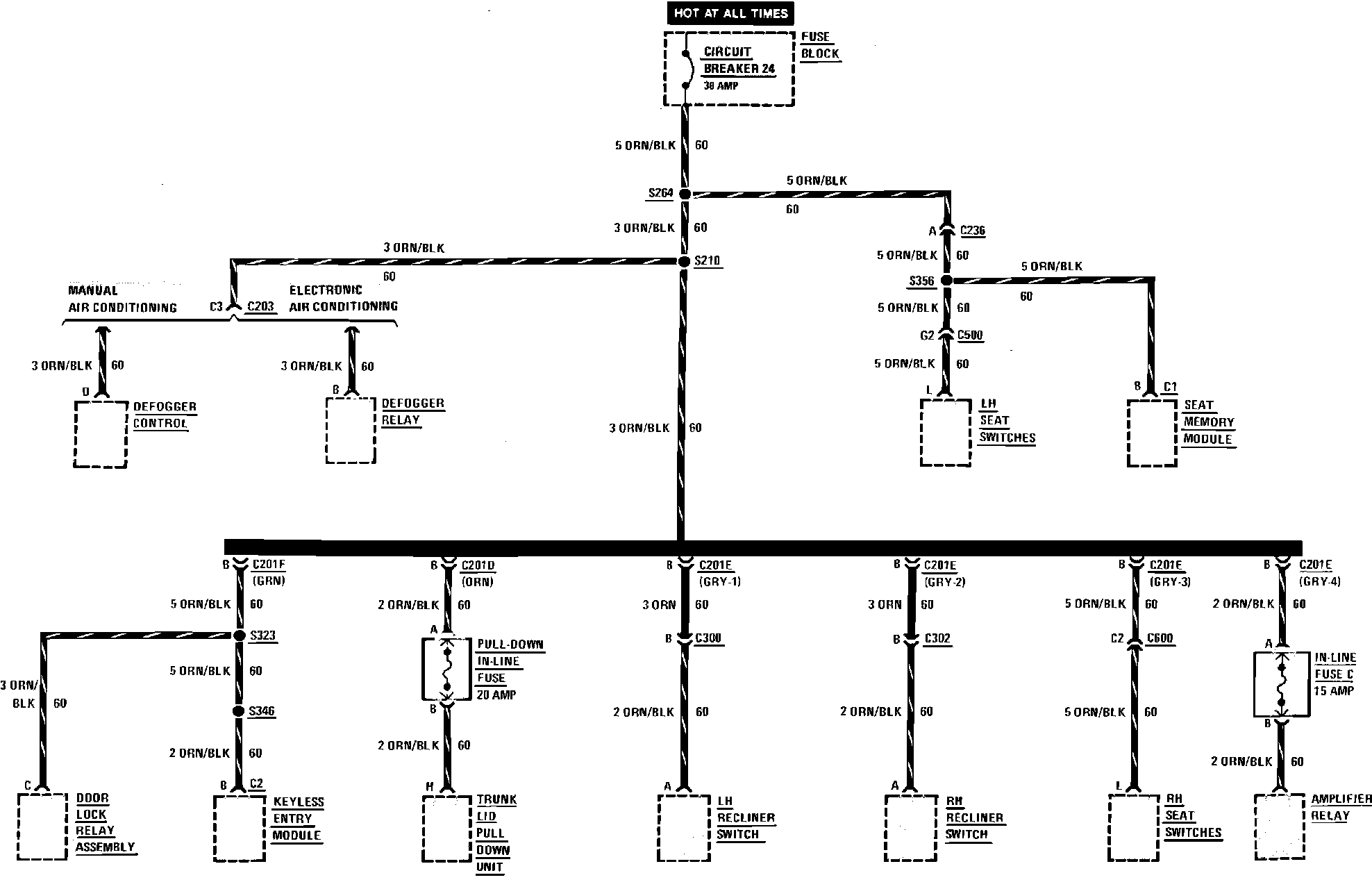

Circuit Breaker 24
Circuit Breaker 24
Fuse Block Details (Circuit Breaker 24):
