Buick
>>
1987
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Blower Controls
>>
With Manual A/C
>>
Electra
Electra

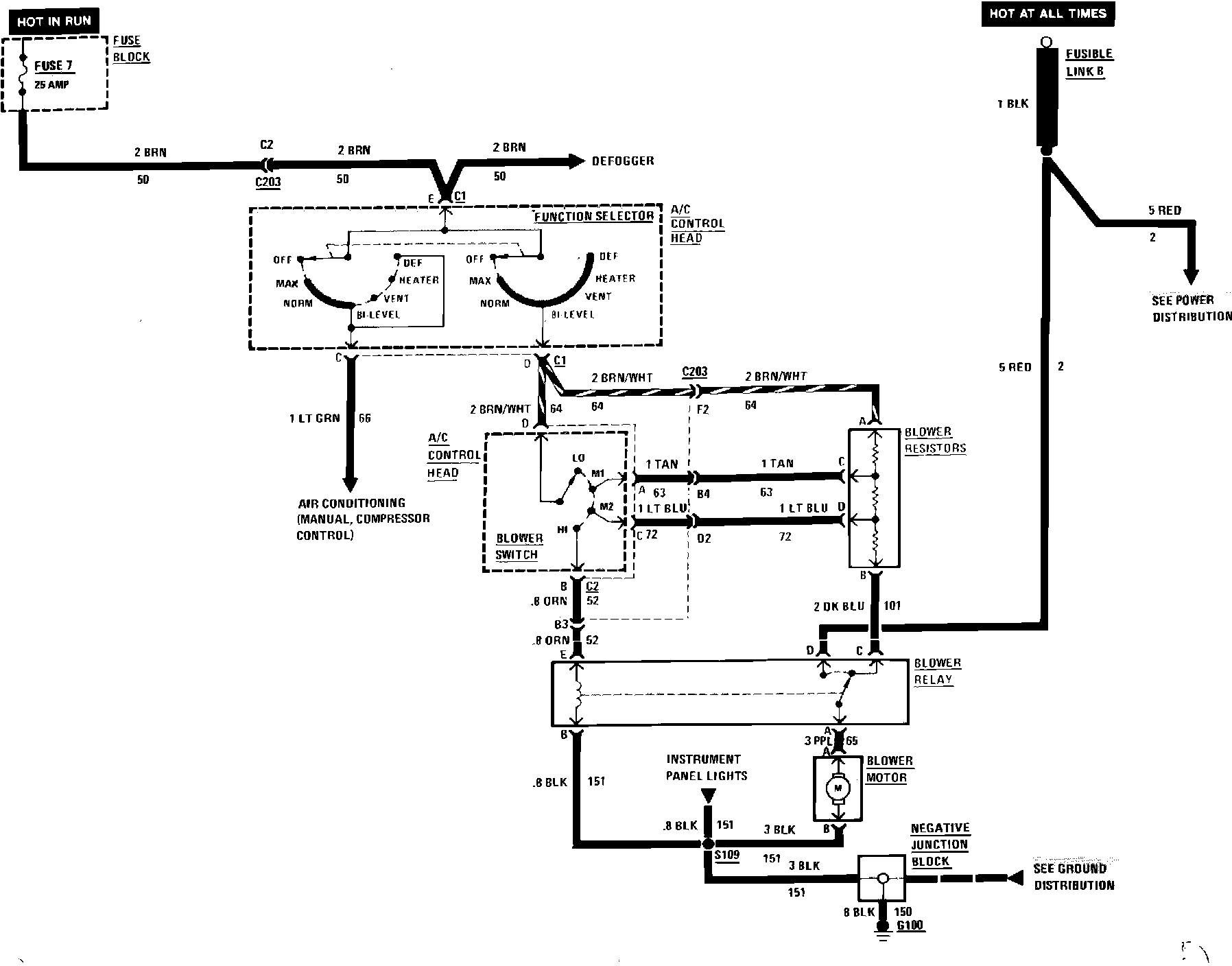

Air Conditioning Blower Controls Wiring Circuit (W/Manual A/C):
