Harmonic Balancer - Crankshaft Pulley: Service and Repair

Crankshaft Balancer:

Remove or Disconnect

1. Negative battery cable.
2. Serpentine belt.
3. Raise car and suitably support.
4. Right front wheel and tire assembly.
5. Inner fender splash shield (right side).
6. Balancer bolt.
7. Crankshaft balancer.

Install or Connect

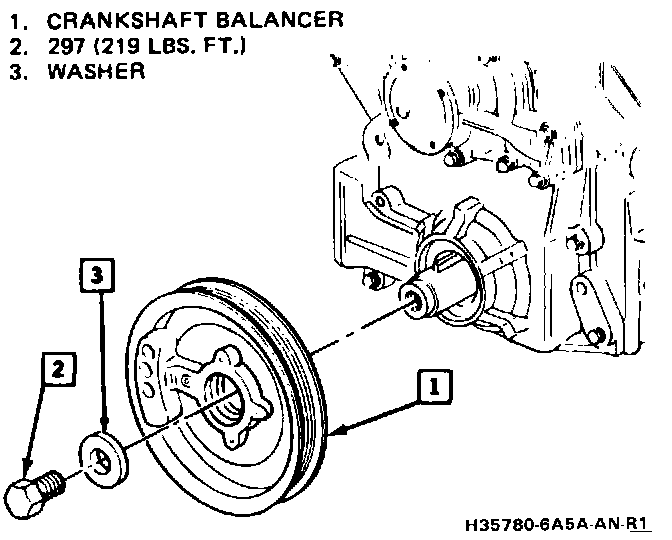

1. Crankshaft balancer.
^ Lubricate seal surface with engine oil.
2. Balancer bolt.

Tighten
^ Balancer bolt to 297 N.m (219 lb. ft.).

3. Inner fender splash shield.
4. Right front wheel and tire assembly.
5. Lower car.

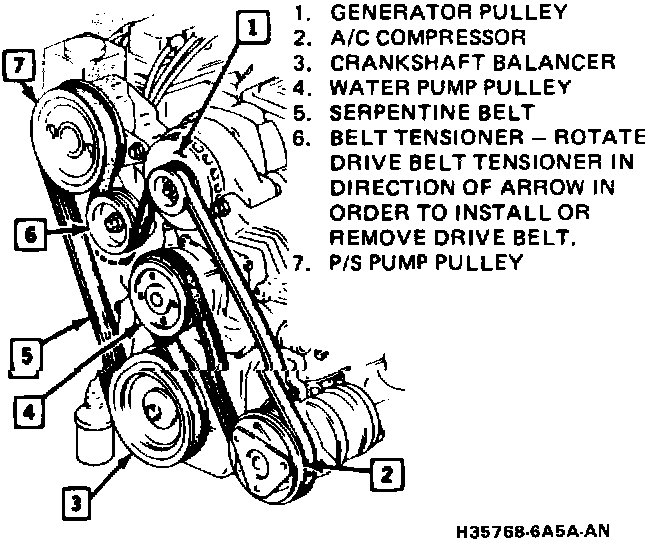

Serpentine Belt (With A/C):

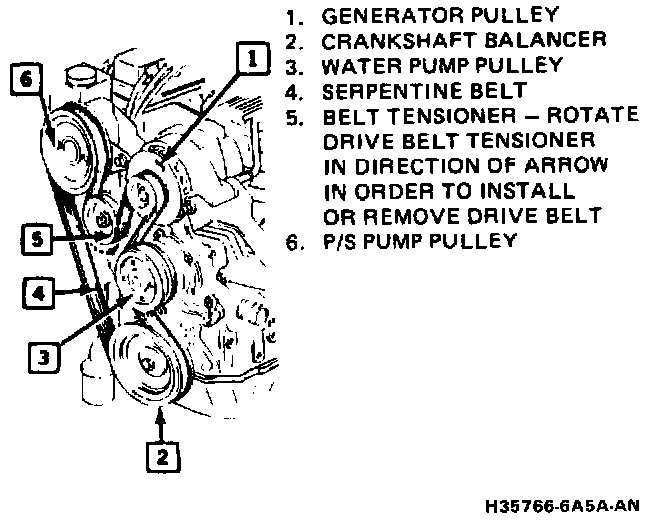

Serpentine Belt (Without A/C):

6. Serpentine belt.
7. Negative battery cable.

Inspect
^ For proper completion of repair.
^ For oil leaks at front crankshaft seal.
