Trunk / Liftgate Solenoid
>>
Trunk Release Wiring Circuit Electra
Trunk Release Wiring Circuit Electra

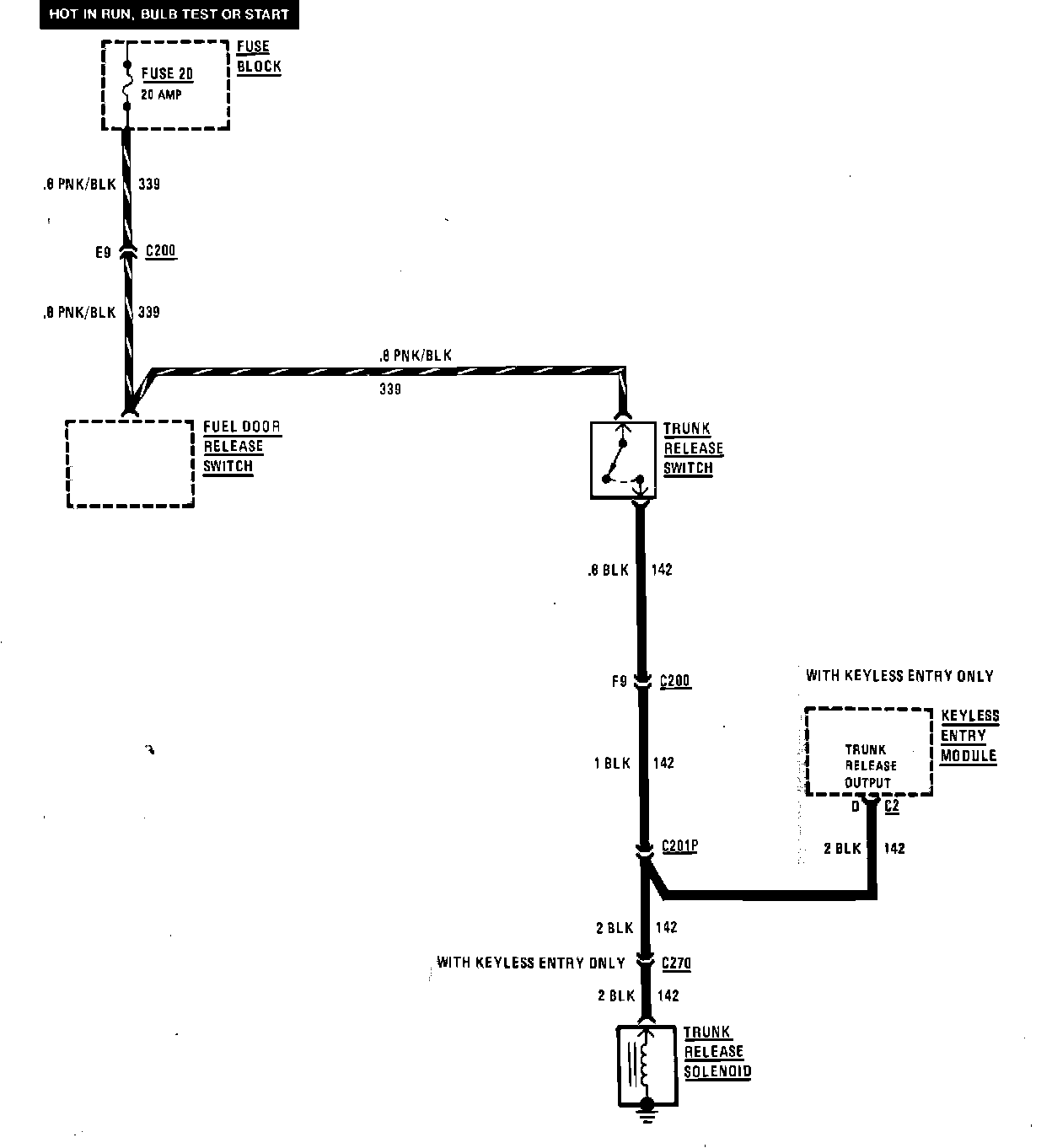

Trunk Release Wiring Circuit:
