Temperature Warning Lamp/Indicator, Engine Cooling
Temperature Warning Lamp/Indicator, Engine Cooling

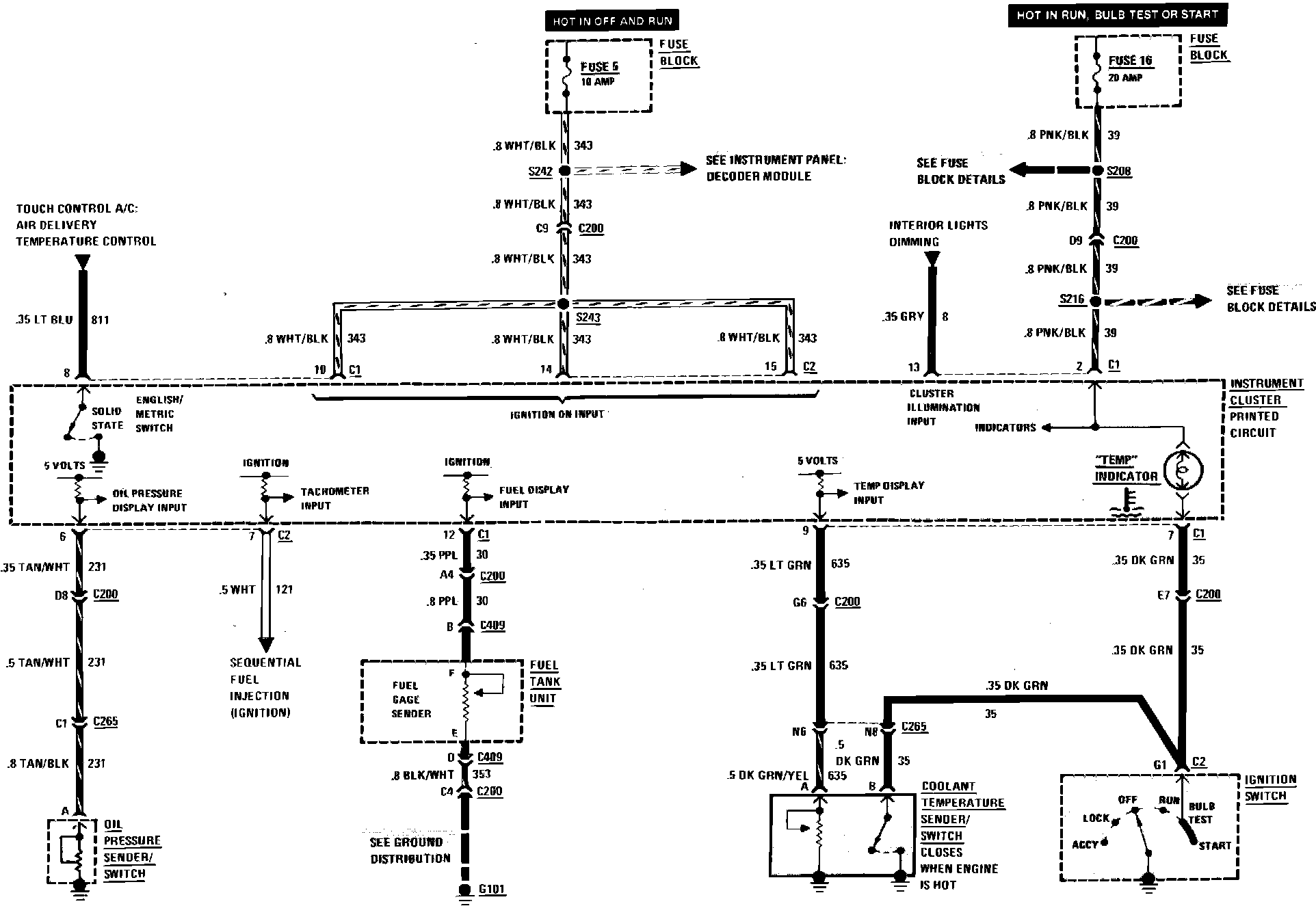

Instrument Panel Coolant Temperature Indicator & Digital Display Wiring Circuit. W/Digital Cluster:
