Home >> Buick >> 1987 >> LeSabre V6-231 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seat Wiring Circuit >> Electra Less Memory Seats, Part 2 of 2

Electra Less Memory Seats, Part 2 of 2

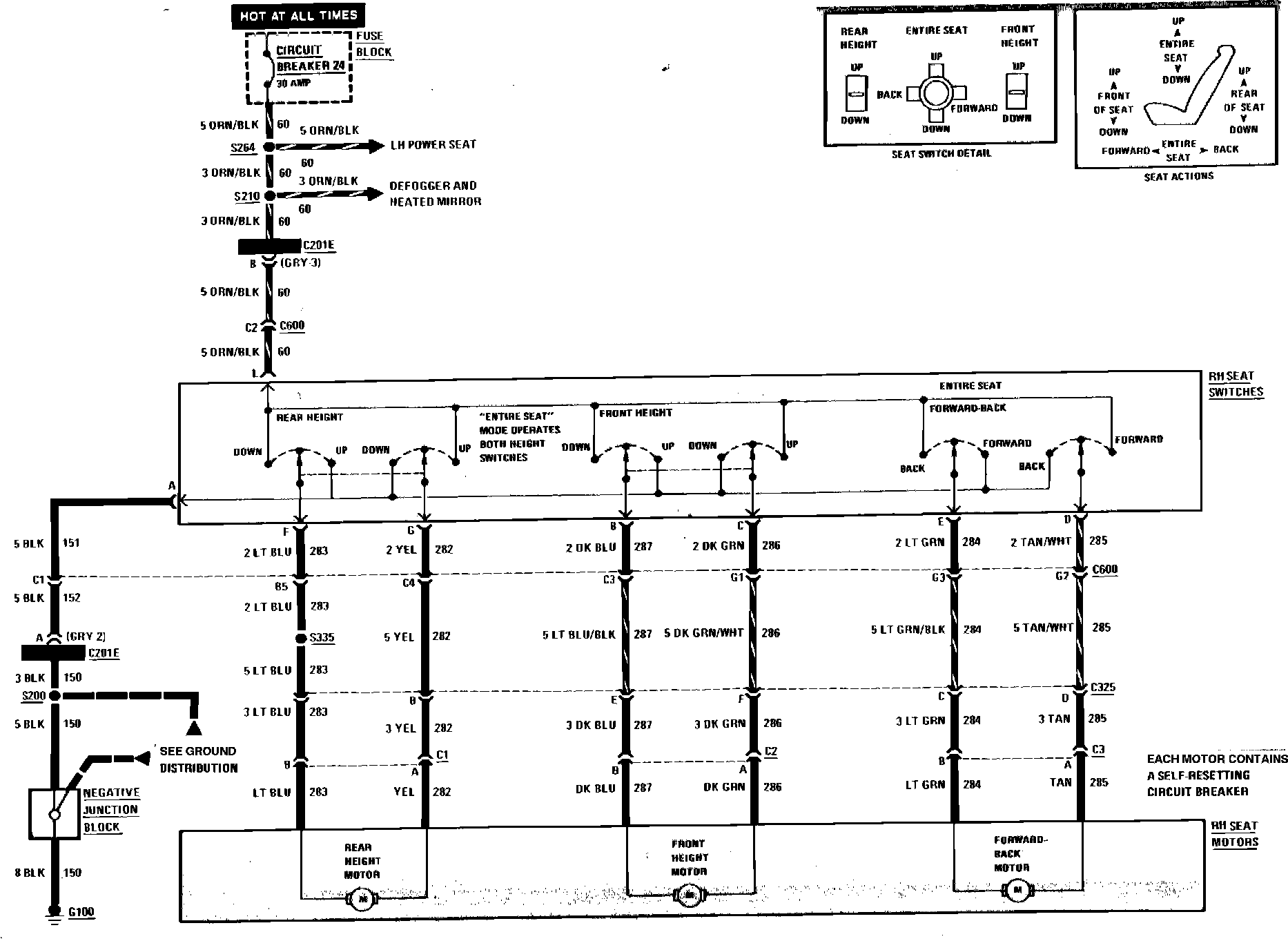

Power Seats Wiring Circuit (Part 2 of 2). Less Memory:
