Buick
>>
1987
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Power Seat Recliner Wiring Circuit
>>
Electra
Electra

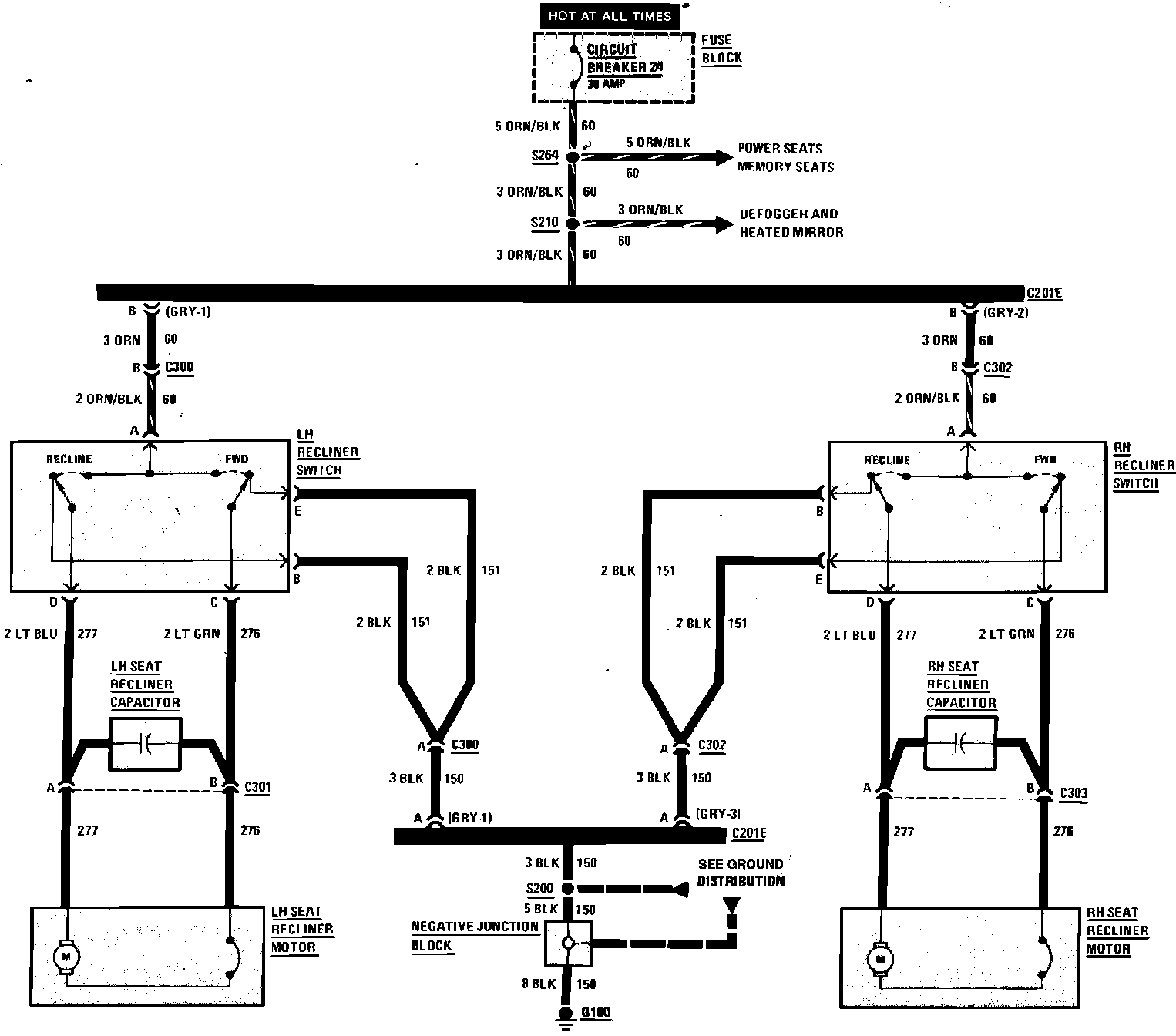

Power Seat Recliner Wiring Circuit:
