Buick
>>
1987
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Powertrain Controls
>>
With Sequential Fuel Injection (SFI)
>>
Ignition
Ignition

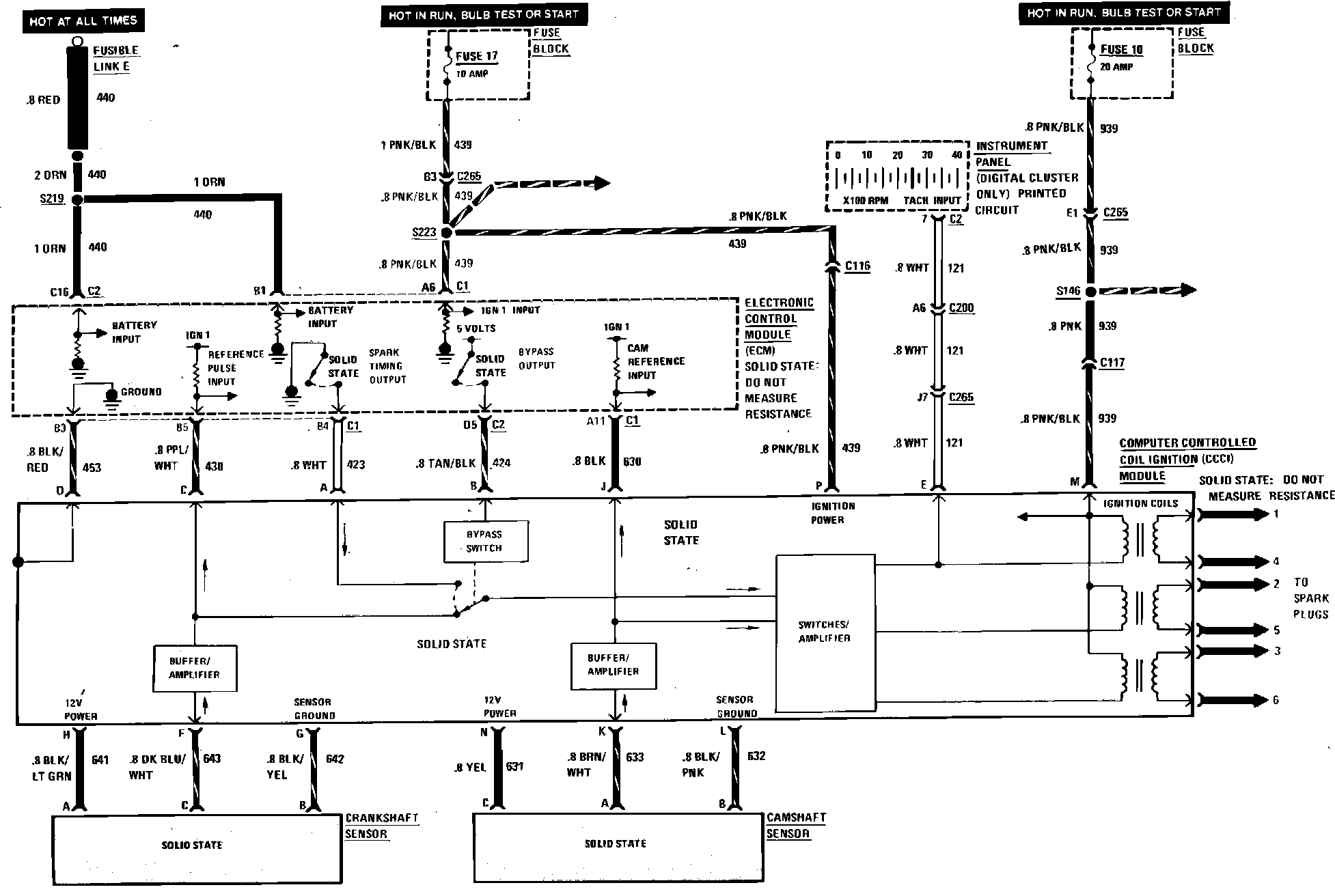

Sequential Fuel Injection Ignition Wiring Circuit:
