Brake Lamp

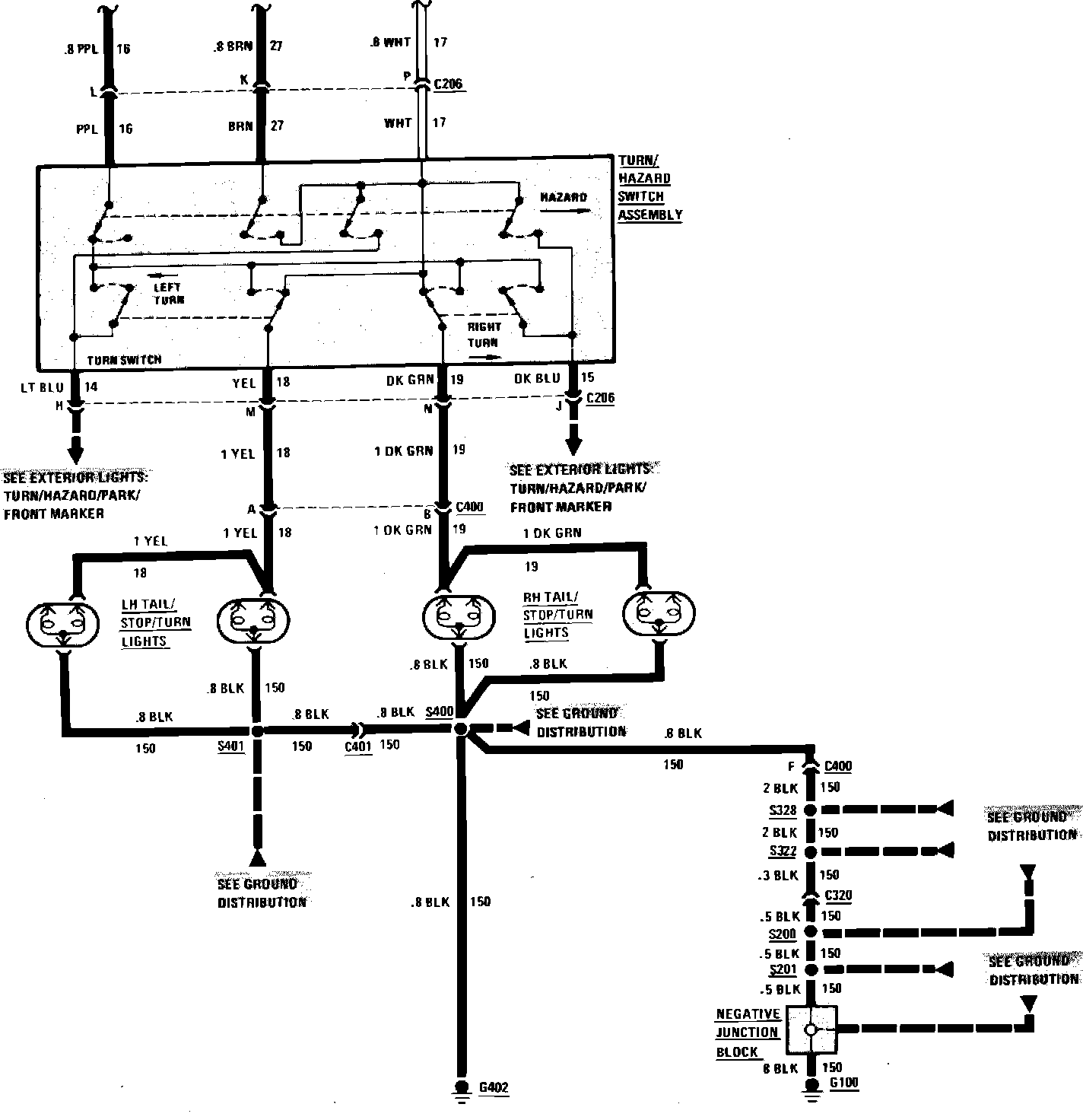

Exterior Lamps Wiring Circuit (Rear Hazard, Stop & Turn, Less Optional Lighting Package) (Part 3 Of 4):

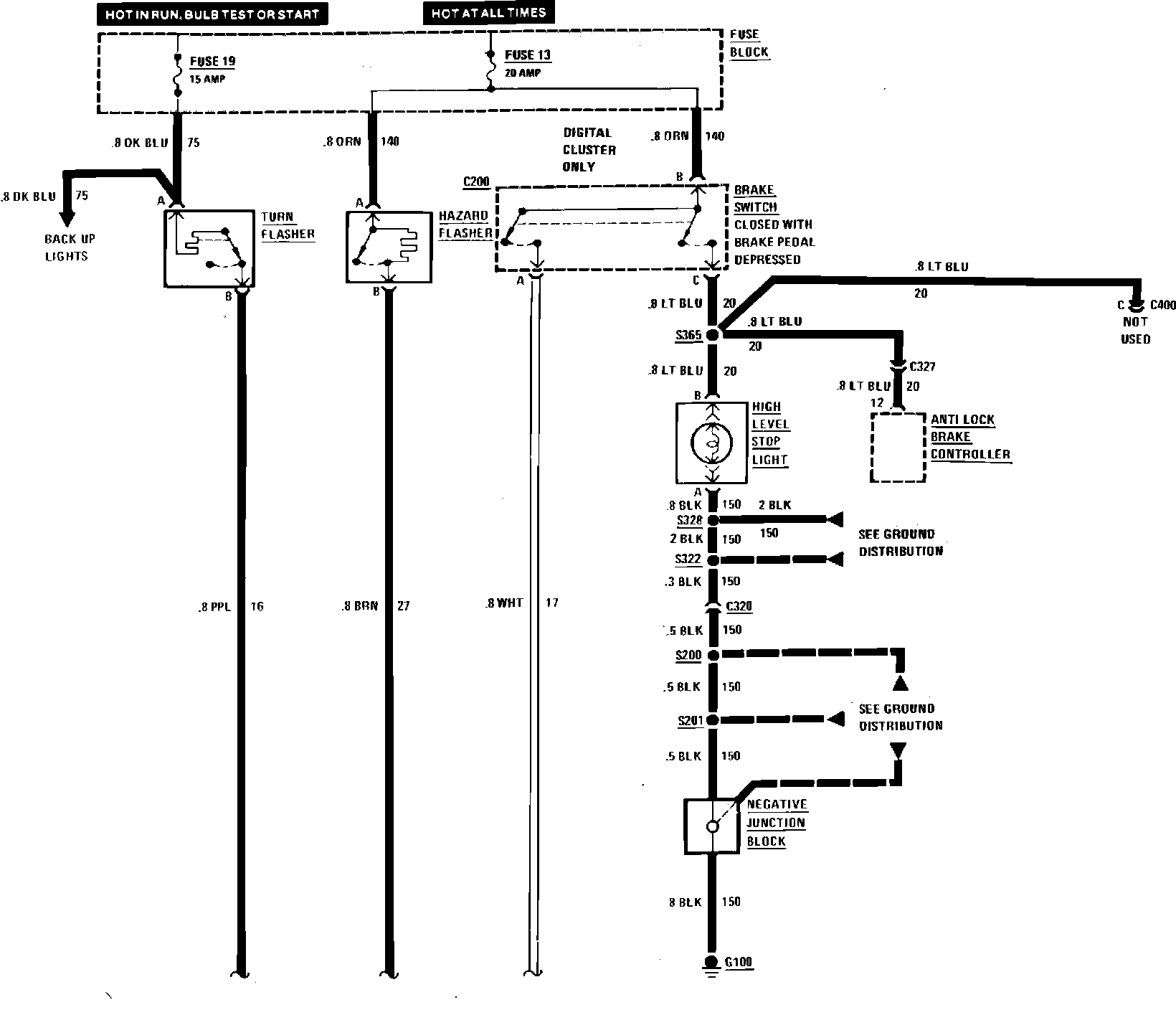

Exterior Lamps Wiring Circuit (Rear Hazard, Stop & Turn, Less Optional Lighting Package) (Part 4 Of 4):
