Buick
>>
1987
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
LeSabre W/Electronic A/C
LeSabre W/Electronic A/C

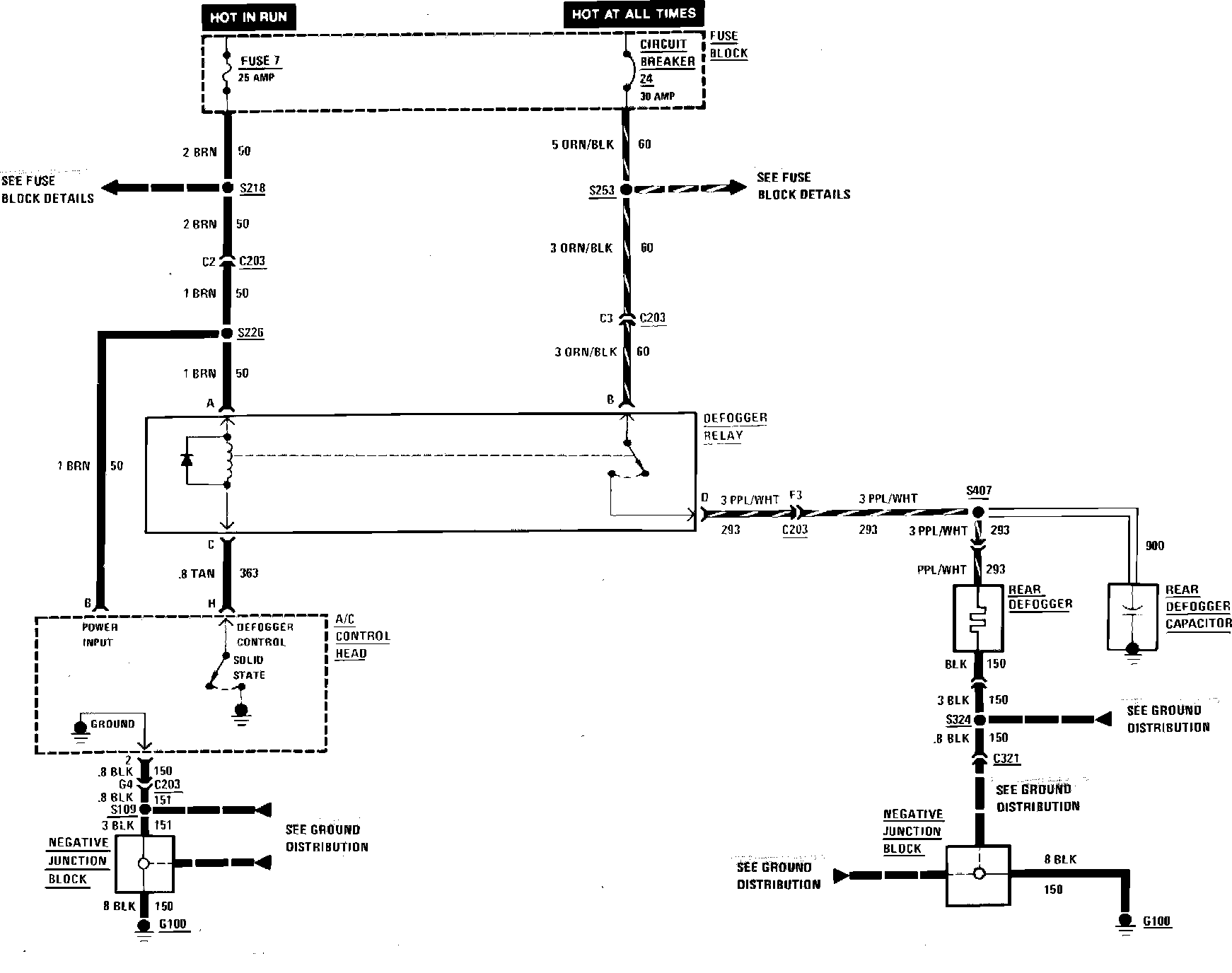

Defogger Wiring Circuit (W/Electronic A/C):
