Electrical Diagrams

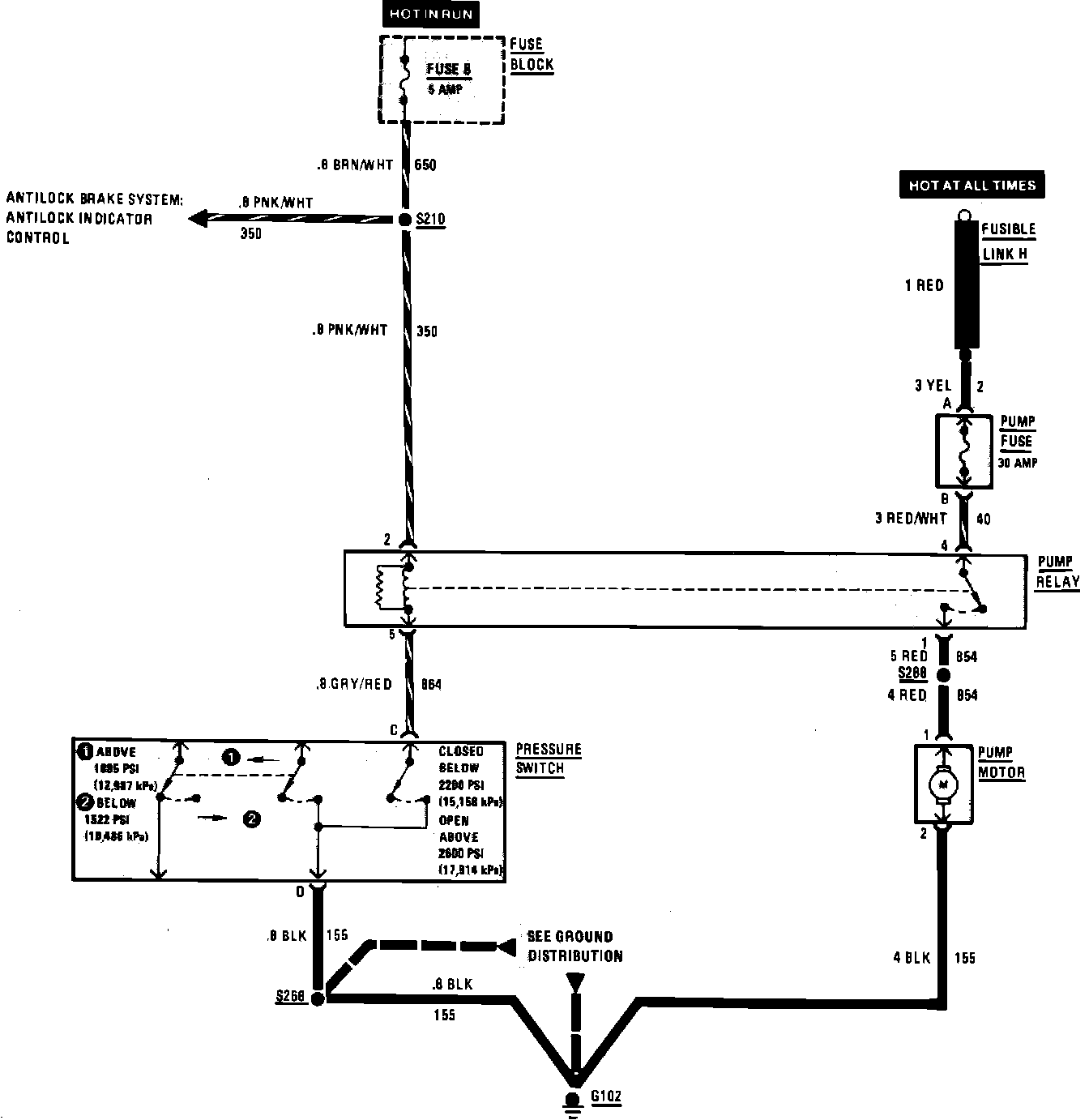

Anti-Lock Brake System Pump Motor Wiring Circuit:

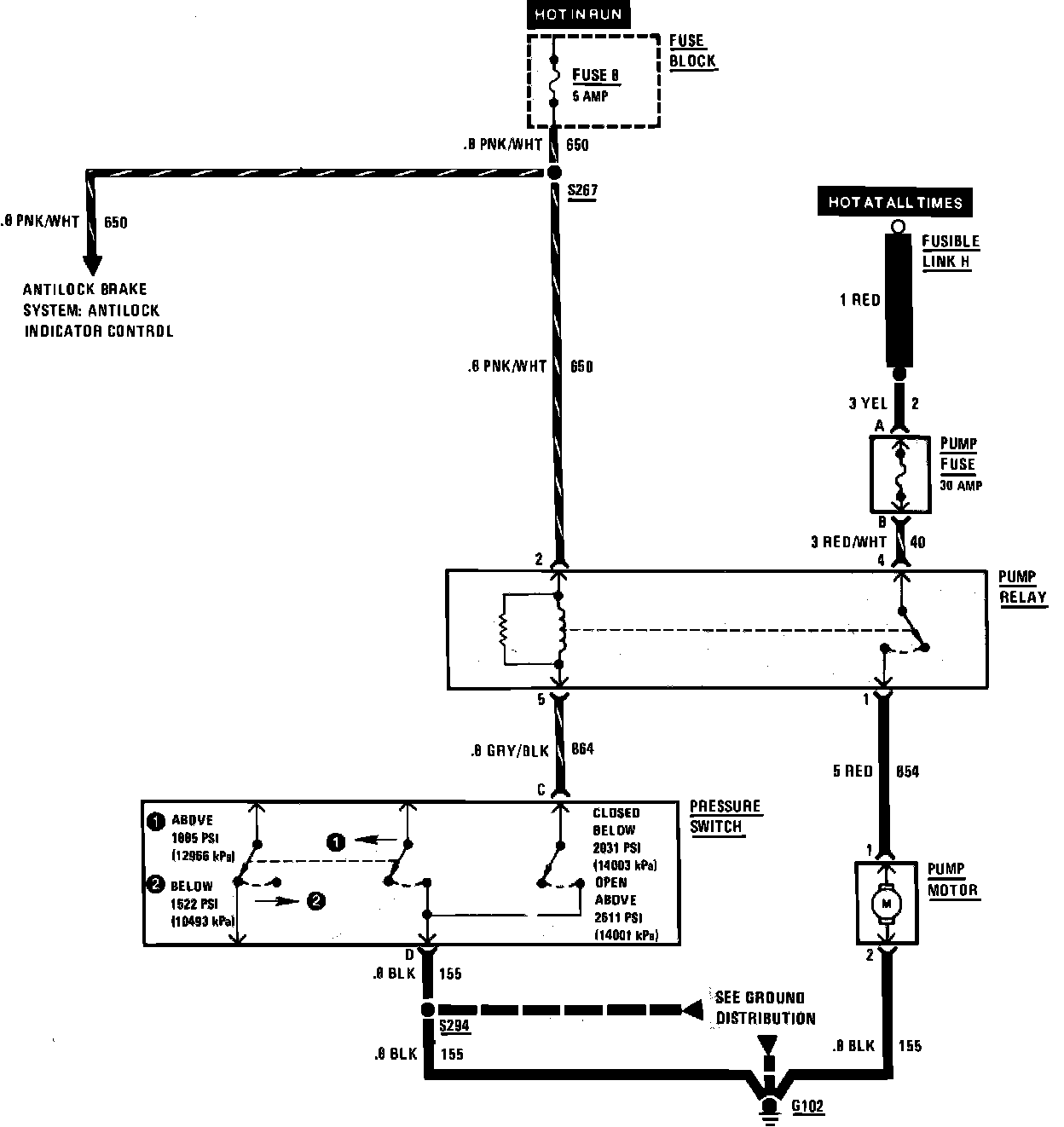

Anti-Lock Brake System Pump Motor Wiring Circuit:
