Home >> Buick >> 1987 >> Electra Park Avenue V6-231 3.8L VIN 3 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Powertrain Controls >> Engine Data Sensors & Ignition

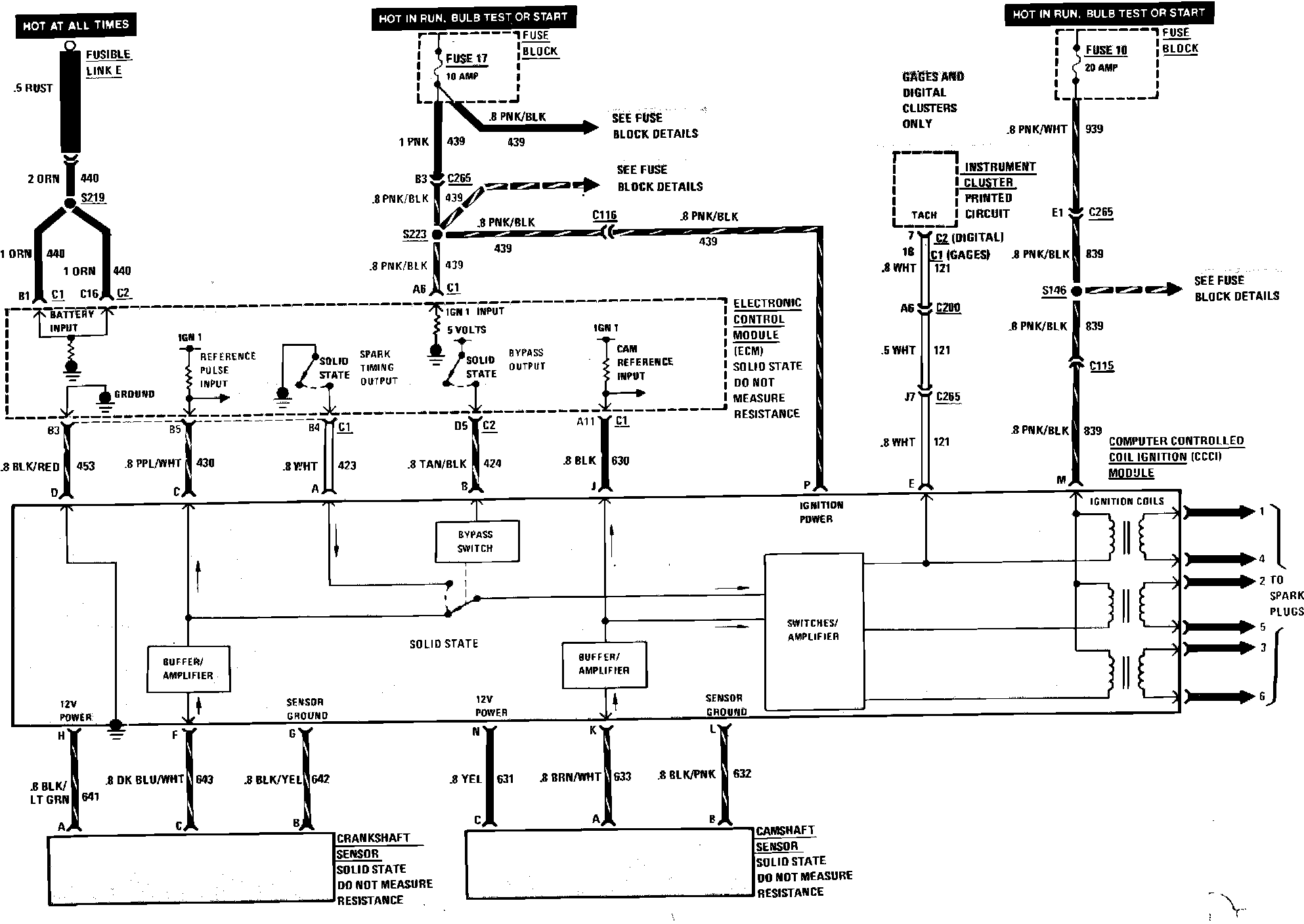

Engine Data Sensors & Ignition

Sequential Fuel Injection Engine Data Sensors & Ignition Electra:
