Buick
>>
1987
>>
Electra Park Avenue V6-231 3.8L VIN 3 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Less Keyless Entry System (Electra)
Less Keyless Entry System (Electra)

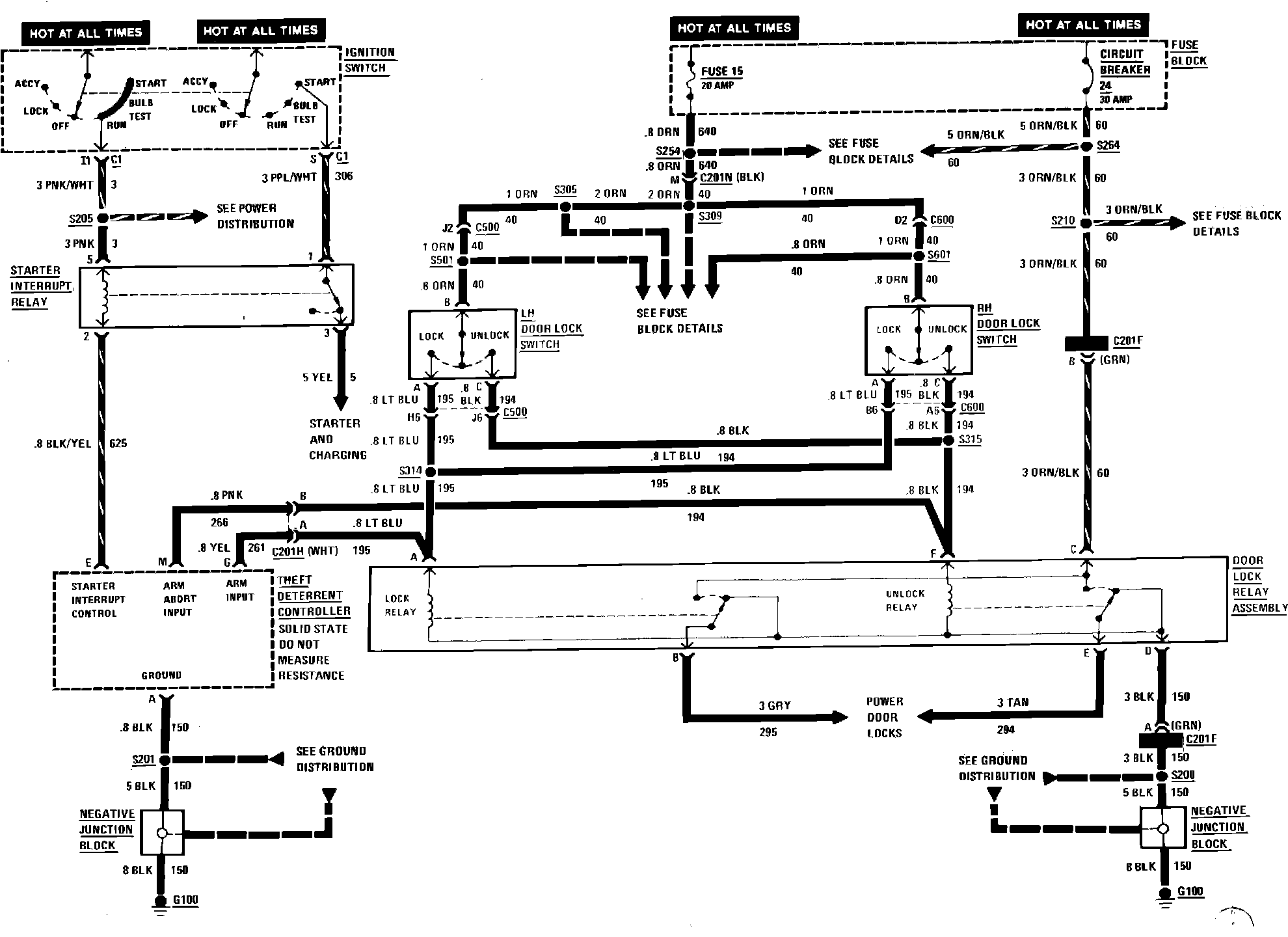

Theft Deterrent System Wiring Circuit Less Keyless Entry System:
