ECM/Battery Fuse & ECM/Ignition Fuse
ECM/Battery Fuse & ECM/Ignition Fuse

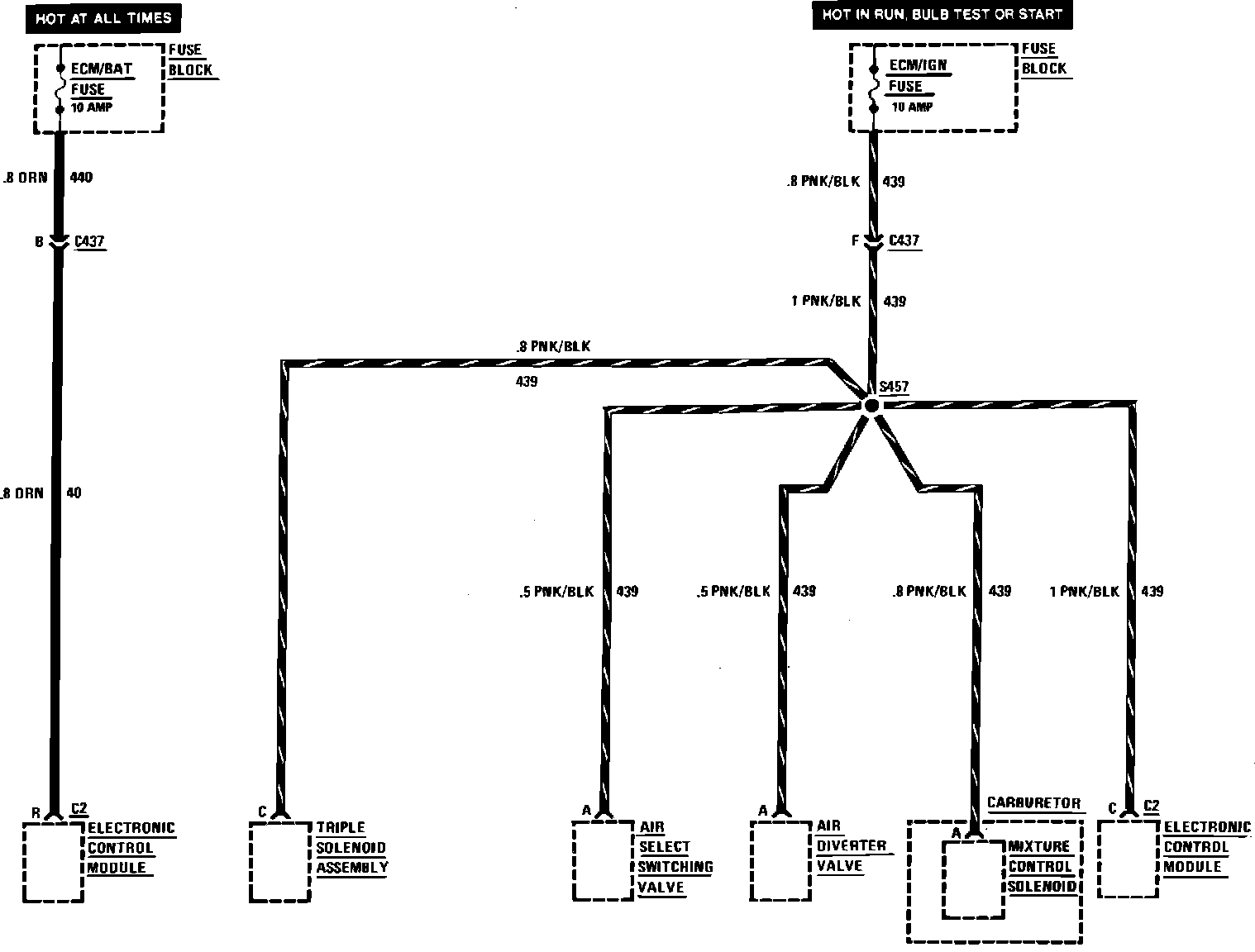

Fuse Block Details (ECM/Battery Fuse & ECM/Ignition Fuse):
