Buick
>>
1987
>>
Electra Estate Wagon V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Cigar Lighter/Clock Fuse
Cigar Lighter/Clock Fuse

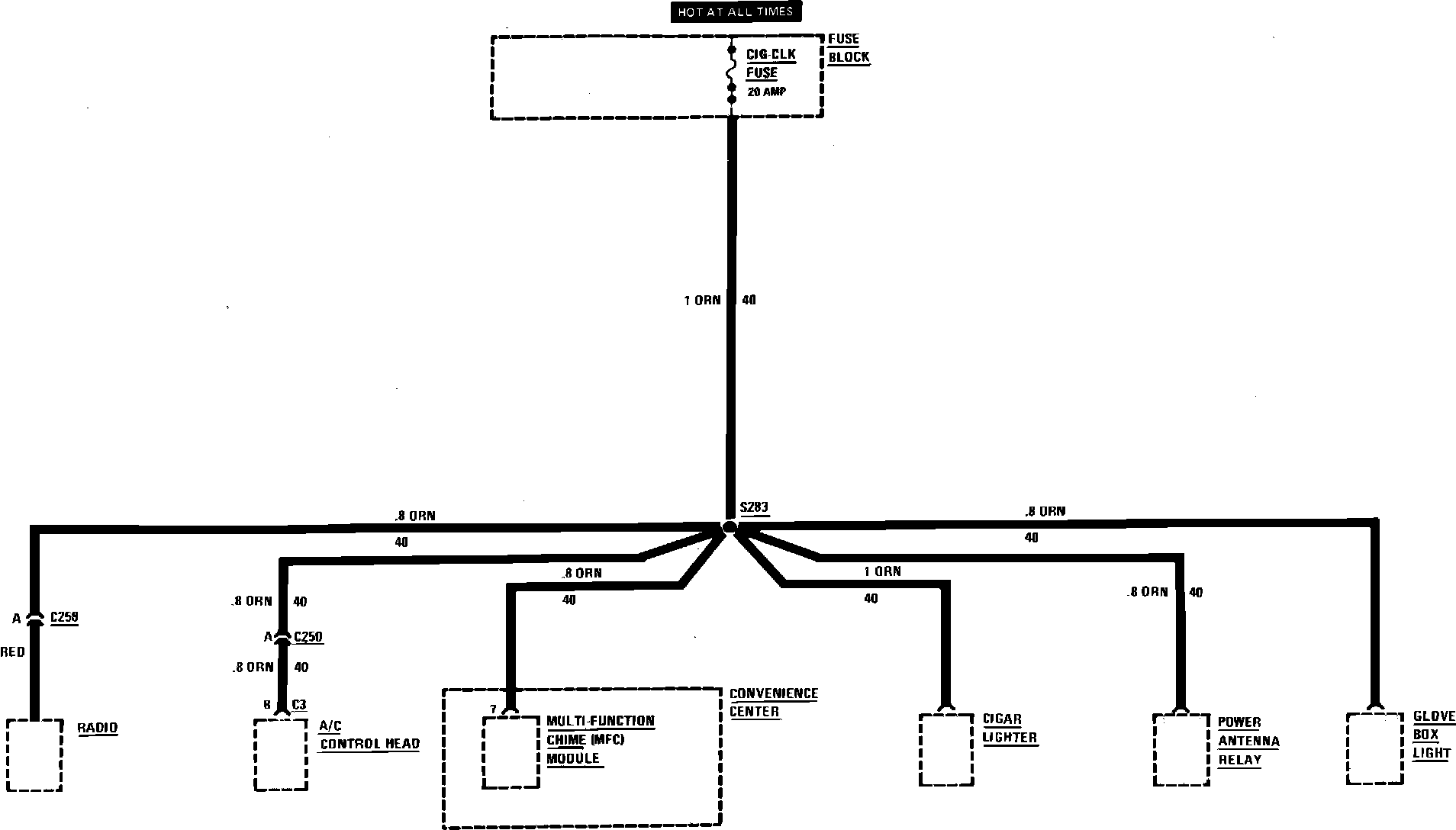

Fuse Block Details (Cigar Lighter/Clock Fuse):
