Buick
>>
1987
>>
Electra Estate Wagon V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G102
G102

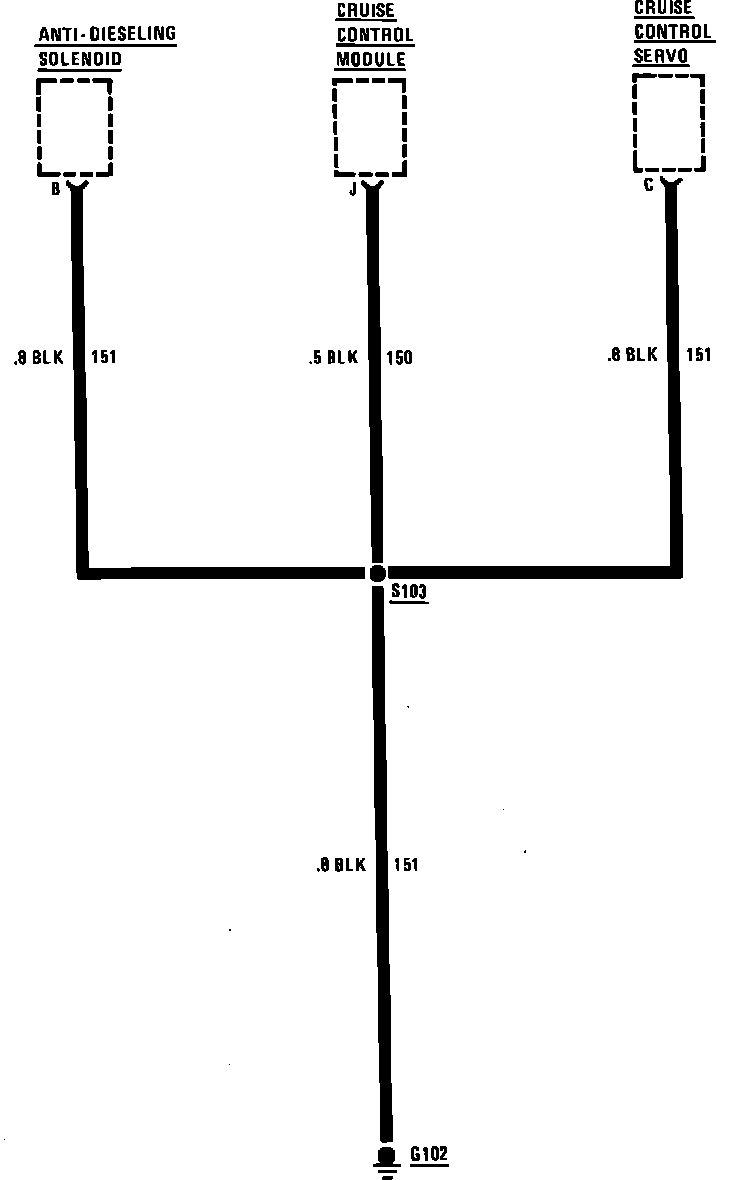

Ground Distribuiton Wiring Circuit (G102):
