Buick
>>
1987
>>
Electra Estate Wagon V8-307 5.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Map Light
>>
Diagrams
>>
Electrical Diagrams
>>
Right Side
Right Side

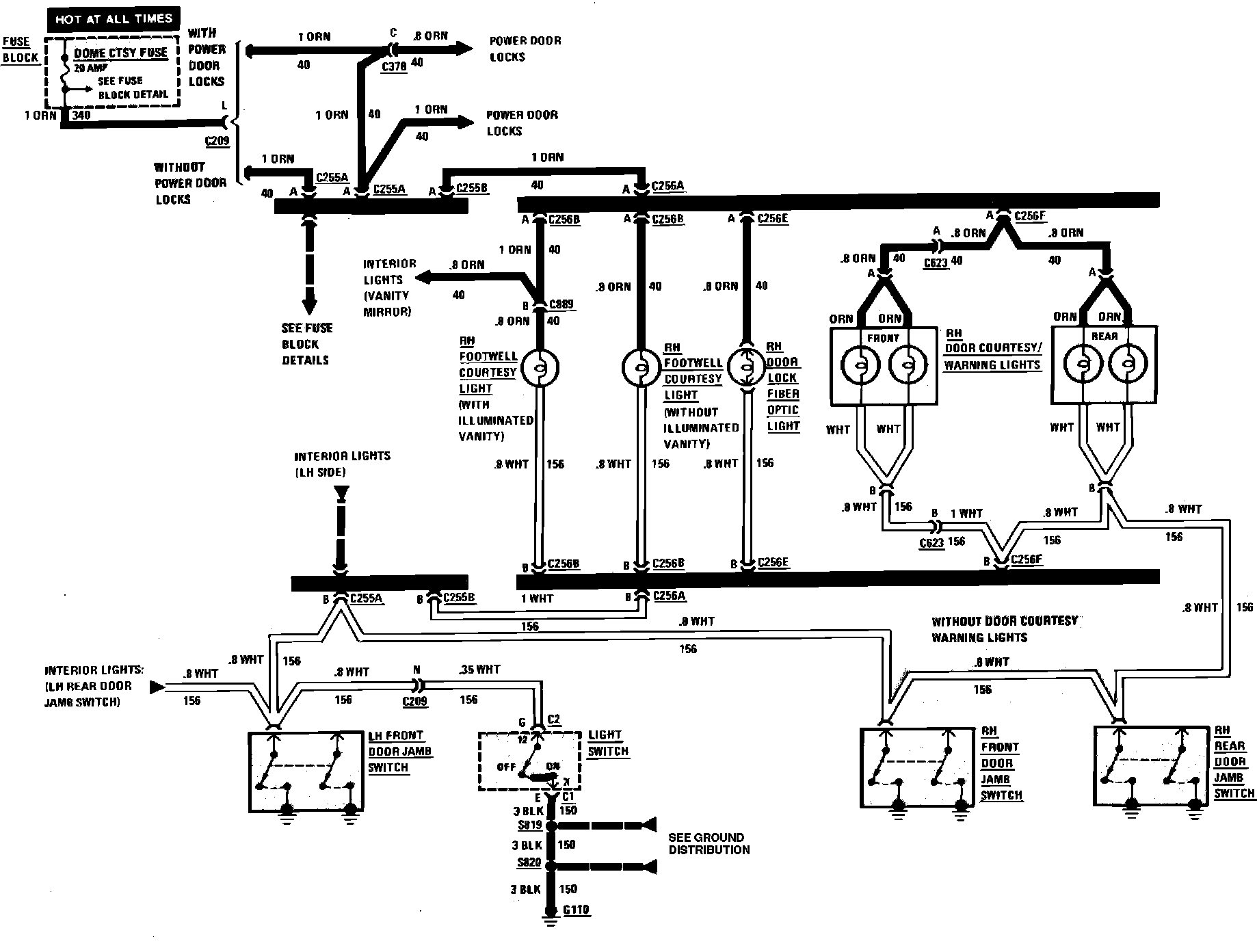

Interior Lamps Wiring Circuit (Courtesy, Dome, Reading & Door Lock Lamps, Right Side):
