Speedometer Head: Testing and Inspection

NOTE: Before starting these tests, check fuse 18 by operating the cruise control (if equipped).

Symptom Table:

If your symptom is not listed in the symptom table, perform all the tests.

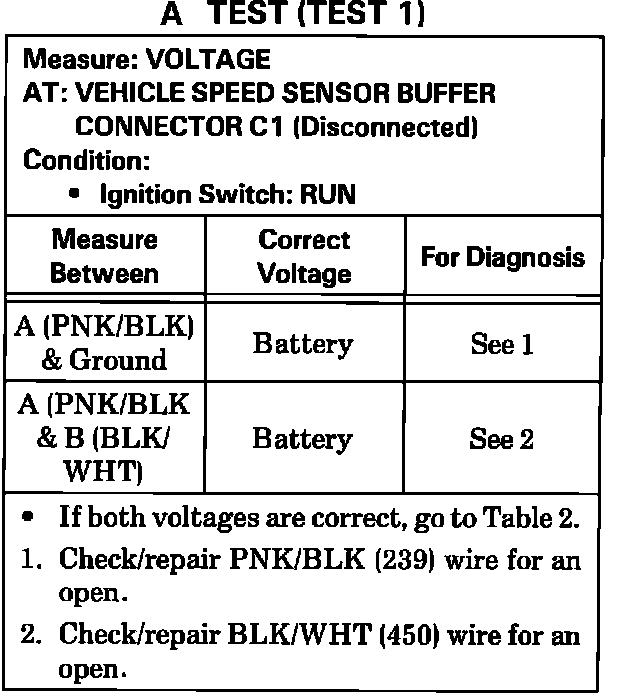

Test A Table 1:

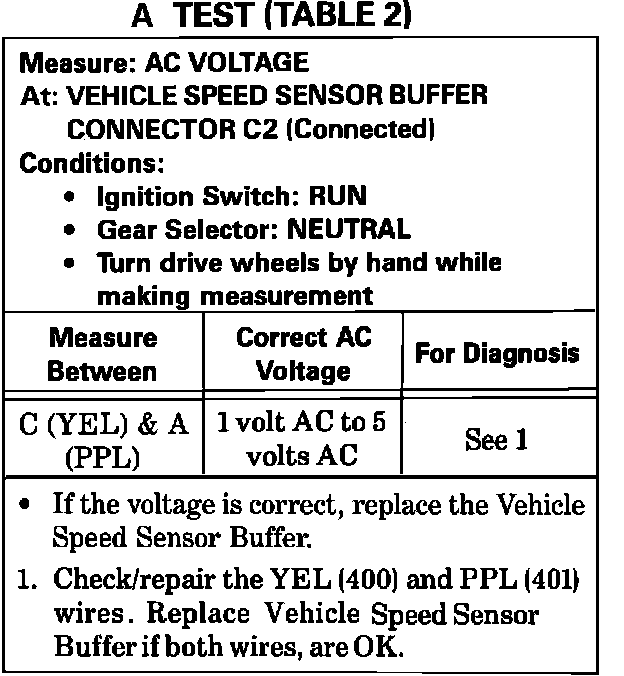

Test A Table 2:

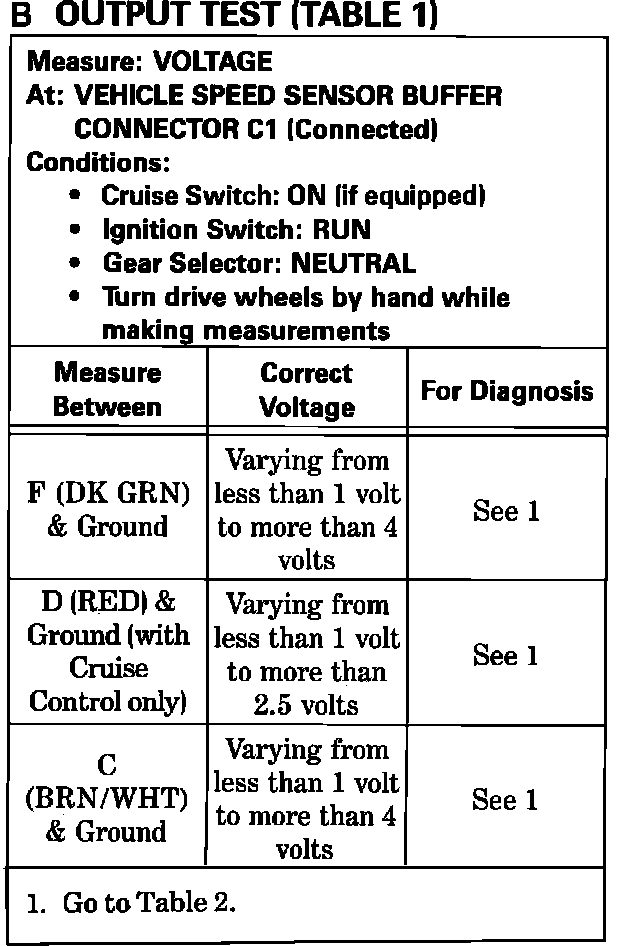

Test B Table 1:

Test B Table 2:

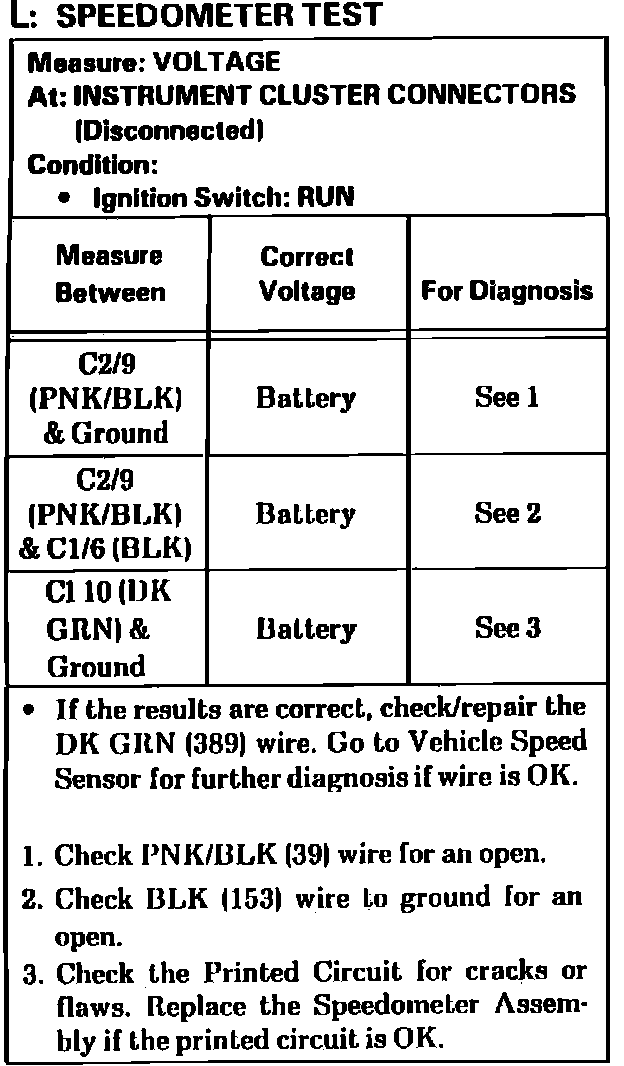

Test L:
